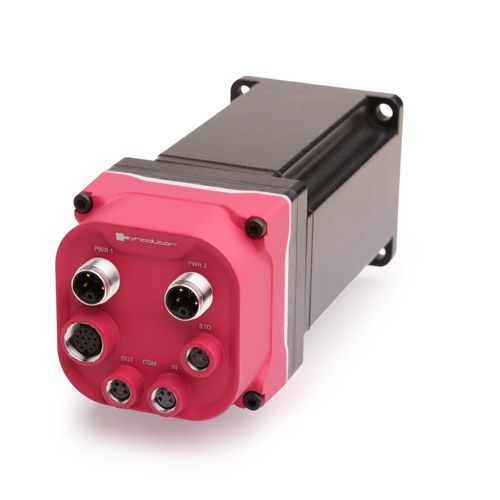

DC servomotor ACTILINK-SC Integro 6

48 Vwith integrated driver and coderwith brake

Product overview
Integrated servomotors based on SOMANET Integro. The ACTILINK-SC Integro 6 series delivers high power density in a compact 60 mm flange package and integrates a fully equipped ServoDrive, providing a ready-to-install servo solution for industrial automation. Configurable for different power ratings, encoder resolutions, fieldbus interfaces and safety options.

Product information & documentation
Datasheets and technical documentation for the ACTILINK-S series are available for download, including electrical and mechanical specifications, mounting dimensions and wiring diagrams to support system integration and commissioning.

Specifications

• Power: 200 W / 400 W / 600 W (flange 60 mm; lengths 1–3; 48 V; 3000 rpm)
• Connector variants: Metric 2 power connectors (standard); alternatives: Metric 1 power connector, Y‑Tec, I‑Tec, open leads (on request)
• Brake: None (standard) or Yes (on request)
• Fieldbus: EtherCAT (standard); alternatives: EtherNet/IP, PROFINET, CAN (on request)
• Integrated encoder resolution: 18 bit (standard); alternatives: 14 bit, 12 bit (on request)
• Multiturn: Yes (standard); No (on request)
• Inputs/Outputs: Standard IO: 24 V Out + 2×AI + 2×DIO + 1×DI + 1×Ext. Enc.; other IO options available on request
• Safety: STO + SBC via IO (standard); safety None available on request
• Functionality sets: Full Performance Servo (standard); other sets such as integrated micro PLC or limited command input dynamics available on request
