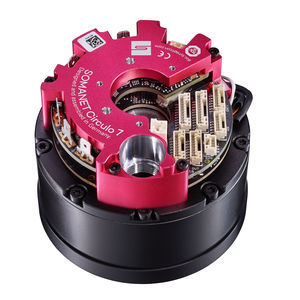

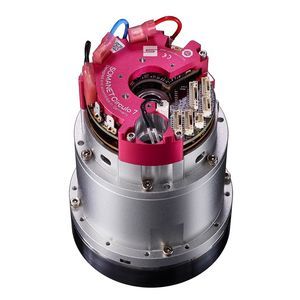

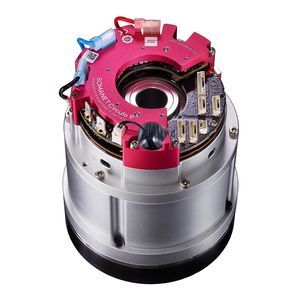

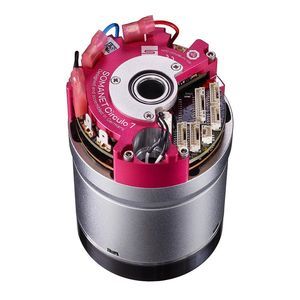

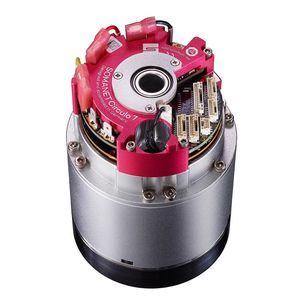

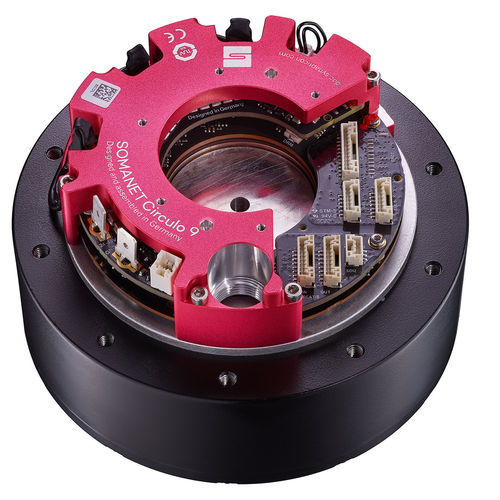

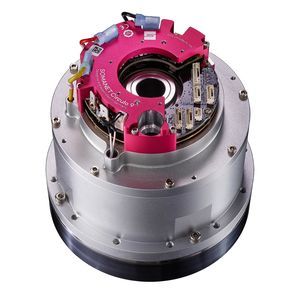

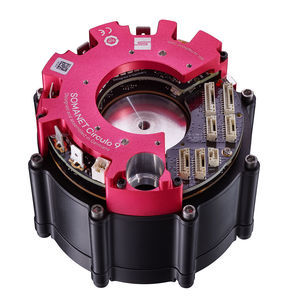

Electric servo-actuator ACTILINK-JD Circulo 12

rotaryservo-motorplanetary gear

Overview
ACTILINK-JD SERIES - High-dynamic robotic joint actuator designed for applications requiring high dynamics and efficiency such as humanoid and polyped robots. Light and compact low-reduction actuator combining a precise single-stage planetary gearbox and a high torque-density motor. Engineered for compact integration with high power transmission, low backlash and high power-to-weight ratio. Integrated with the Synapticon SOMANET Circulo servo drive family and supporting EtherCAT communication.

Key technical summary

• Rated Torque: 40 Nm
• Peak Torque: 110 Nm
• Rated Output Power: 700 W
• No-Load Speed: 200 rpm
• Rated Load Speed: 167 rpm
• Weight:
  • 1580 g (variant S1-SS)
  • 1845 g (variant D2-SS)
  • 1870 g (variant D2-SM)
• Reduction Ratio: 9:1
• Outer Diameter: 120 mm
• Length: 73 mm / 85.5 mm (variants S1-xx / D2-xx)
• Communication: EtherCAT
• Safety: STO (standard), Safe Motion / FSoE (option)

Features

• Dynamics
  • High-torque outrunner motor delivering strong peak torque and acceleration
  • High power-to-weight ratio for dynamic robotic applications
  • Suitable for fast cyclic motions and agile platforms
• Planetary gearbox
  • Single-stage planetary design for compactness and high power transmission
  • Low backlash and light backdrivability offering quasi direct-drive behavior
  • High efficiency and cost-effective architecture
• Bearings & mechanical integration
  • Optimized bearing arrangement to support bending, radial and axial loads
  • Stiff and durable design for cyclic loading and easy mechanical integration

Options and variants

• Functional safety options: STO, SBC via I/O or Safe Fieldbus / Safe Motion
• Encoder configurations: Single encoder or dual encoder (1x separate on output shaft)

Electronics
Electronics and drive functionality reference the Synapticon SOMANET Circulo series (servo drive family used with ACTILINK-JD actuators). Supports EtherCAT communication and advanced motion and safety features.

Technical specifications

• Rated Torque: 40 Nm
• Peak Torque: 110 Nm
• Rated Output Power: 700 W
• No-Load Speed: 200 rpm
• Rated Load Speed: 167 rpm
• Weight variants:
  • 1580 g (S1-SS)
  • 1845 g (D2-SS)
  • 1870 g (D2-SM)
• Reduction Ratio: 9:1
• Outer Diameter: 120 mm
• Length: 73 mm (S1 variants) / 85.5 mm (D2 variants)
• Communication interface: EtherCAT
• Functional Safety: STO, SBC via I/O or Safe Fieldbus, Safe Motion (options)
• Encoder: Single encoder or Dual encoder (1x separate on output shaft)
