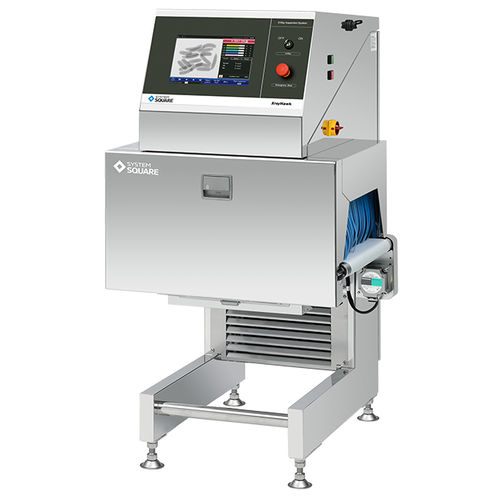

Dual-energy inspection machine SX2-3671MW
X-rayautomaticindustrial

dual-energy inspection machine
dual-energy inspection machine
dual-energy inspection machine
dual-energy inspection machine
Add to favorites
Compare this product


Characteristics

Technology
X-ray, automatic
Sector
industrial, for the pharmaceutical industry, for the food industry, for the packaging industry, multi-function, for the medical industry, for the cosmetics industry
Applications
packaging line, for food processing line
Other characteristics
measurement, high-resolution, in-line, non-contact, belt conveyor, waterproof, dual-energy
Convey weight capacity

10 kg (22 lb)

Width inspection range

330 mm (13 in)

Height inspection range

100 mm (4 in)

Output power

Min.: 60 kW (82 hp)

Max.: 300 kW (408 hp)

Description

SX2-3671MW Foreign objects undetectable by the conventional X-ray can be detected! Equipped with a high-precision dual energy sensor It is possible to float up only the foreign objects by performing image processing based on the X-ray images of two different energy bands. Due to this mechanism, high-precision inspection of foreign objects can be achieved. Detection of minute foreign objects achieved with high precision Minute foreign objects of 0.127mm high and 0.14mm wide can be detected from pharmaceutical raw material powder in a bag. In the test using a sample product, a highly reliable result of 10 successful detections out of 10 times was obtained. Detection errors reduced by accurate identification of overlapped products This system accurately identifies overlapped products and is effective to reduce detection errors. In the meat industry such as ham and sausage, it can effectively detect the foreign objects which it was difficult to detect by the conventional systems.
