X-ray inspection machine SX2-3873HW
packaging linefor food processing lineindustrial

X-ray inspection machine - SX2-3873HW - SYSTEM SQUARE Inc. - packaging line / for food processing line / industrial

X-ray inspection machine - SX2-3873HW - SYSTEM SQUARE Inc. - packaging line / for food processing line / industrial - image - 2

X-ray inspection machine - SX2-3873HW - SYSTEM SQUARE Inc. - packaging line / for food processing line / industrial - image - 3

Add to favorites

Compare this product

fo_shop_gate_exact_title

Go to the SYSTEM SQUARE Inc. website for more information

Characteristics

Technology

X-ray

Applications

packaging line, for food processing line

Sector

industrial, for the pharmaceutical industry, for the food industry, for the packaging industry, multi-function, medical, for the cosmetics industry

Other characteristics

measurement, high-resolution, high-speed, in-line, non-contact, belt conveyor, waterproof, automatic

Output power

Max.: 300 kW
(408 hp)

Min.: 60 kW
(82 hp)

Inspection range width

Max.: 370 mm
(15 in)

Min.: 0 mm
(0 in)

Inspection range height

Max.: 150 mm
(6 in)

Min.: 0 mm
(0 in)

Convey weight capacity

Max.: 5 kg
(11 lb)

Description

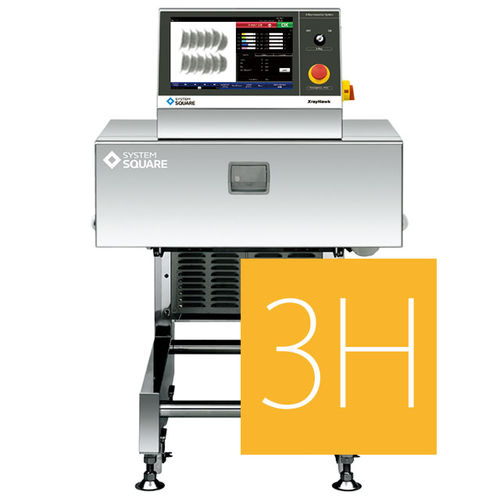

SX2-3873HW High sensitivity and high stability achieved with the new X-ray sensor * High sensitivity achieved with the original X-ray sensor 3H In the system with the new X-ray sensor (SX2-3873HW), a further high-sensitivity inspection has been achieved compared with the SYSTEM SQUARE standard system (SX2-4074W). By comparing the inspection images, it can be confirmed that the new image is sharper. * More stable high sensitivity achieved With the system with the new X-ray sensor (SX2-3873HW), you can detect foreign objects more strongly. As a result, you can make the high-sensitivity inspection stably. In the in-house test, the new system has detected the test pieces smaller by one size compared with the conventional system (SX2-4074W). Able to carry CE Marking
