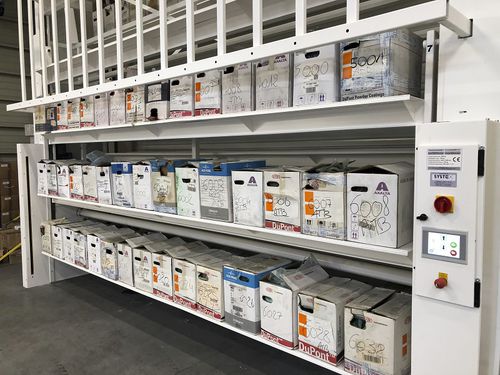

Vertical storage carousel

for cardboard boxesdrum

Vertical carousel system – CARDBOARD BOXES – CYLINDRIC DRUM CONTAINERS Applications : Cardboard boxes with same dimensions can be store on vertical carousel. Cylindrical oil containers, specific containers. Storage method : The format of the tray is specially adapted to your needs. The overall capacity depends on the length and the available height. Possibility of integrating a holding tank for liquid polluting products. Perfectly adapted to reduce the injuries risks thanks to an ergonomic picking of the loads. Options and Accessories : Safety light curtains – Removable barrier – etc… Loading / Unloading : According to the weight to be handle, several solutions are possible and specific to each installation: ergonomic lifting trolley or manual picking. TECHNICAL OVERVIEWS* Maximum weight : 300 kg. Maximum height of spotlight : 850 mm. Total height: from 3.5 meters to 6.0 meters. Maximum usefulle lenght : 4 meters . Linear speed : 4.00 m/min. Control panel : press buttons or electronic selector. Power : 220v or 380v – from 0.55kw to 1.5kw *in standard version – subject to change.
