Vertical storage carousel

for rollsfor heavy loadscable drum

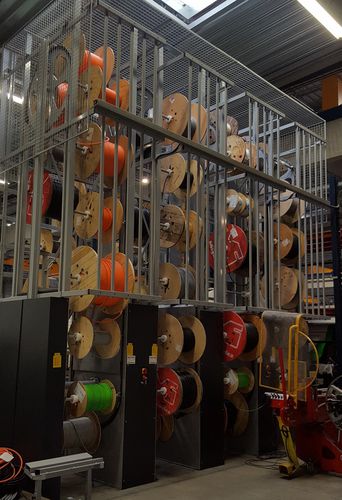

Applications : Cable drums, cable reels, rubber drums, specific drums. Storage method : The cables drums can be either placed in swing benches (with free rollers or not) or suspended side to side by an axle under a IPE metallic profile. The cumulative weight will determine the maximum possible length. Options and Accessories : Centring cones – Safety light curtain – Removable barrier – Measuring system on the front… Loading/Unloading : According to the weight to be handle, several solutions are possible and specific to each installation: ergonomic lifting trolley, trolley on wheels … TECHNICAL OVERVIEWS : 3 ranges of carousels depending external diameter. Maximum weight : on request (depending total weight) Maximum diameter : 900 mm. Height : from 3m to 6m height. Total lenght : from 2 m to 5m Linear speed : from 3.94 to 4.27 m/min. Control panel : press buttons or electronic selector. Power : 220v or 380v – 0.75kw
