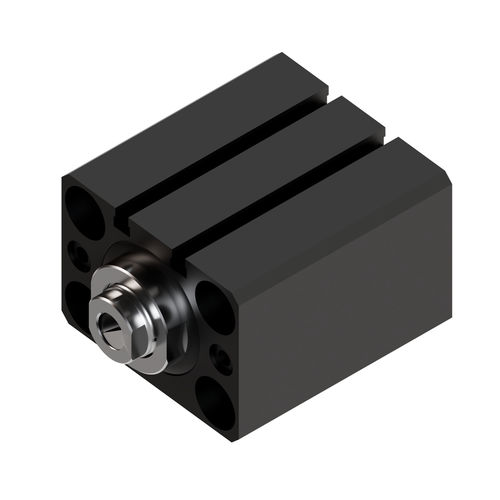

Hydraulic cylinder CCpistonmagnetic pistondouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston, magnetic piston
- Configuration
- double-acting
- Material
- aluminum
- Applications
- clamping
- Other characteristics
- compact, position-sensing
- Stroke
20 mm, 50 mm
(0.787 in, 1.969 in)- Bore
Max.: 100 mm
(3.94 in)Min.: 20 mm
(0.79 in)- Pressure
Max.: 250 bar
(3,625.94 psi)Min.: 1 bar
(14.5 psi)- Rod diameter
18 mm, 22 mm, 28 mm, 36 mm
(1 in, 1 in, 1 in, 1 in)- Operating Temperature
Max.: 80 °C
(176 °F)Min.: -20 °C
(-4 °F)
Description
Extremely compact dimensions
Special anti-wear body treatment
Wide selection of bore sizes and strokes available
Recessed sensor mounting slot
Various applications: locking, pressing, marking, etc.
Custom solutions available upon request
The CC short-stroke hydraulic cylinders meet the need to create pressers that have small dimensions. Their main feature is an extremely reduced size compared to ISO cylinders, making them suitable for locking or small movements in very tight spaces.
