Hydraulic cylinder CCP seriespistondouble-actingsteel
Add to favorites
Compare this product
Characteristics
- Type
- hydraulic
- Technology
- piston
- Configuration
- double-acting
- Material
- steel
- Applications
- industrial, for machine tools
- Other characteristics
- compact, blocking
- Stroke
Max.: 100 mm
(3.937 in)Min.: 5 mm
(0.197 in)- Bore
Max.: 80 mm
(3.15 in)Min.: 20 mm
(0.79 in)- Pressure
Max.: 207 bar
(3,002.28 psi)Min.: 50 bar
(725.19 psi)- Rod diameter
Max.: 45 mm
(2 in)Min.: 12 mm
(0 in)- Force
Max.: 104 kN
Min.: 1.57 kN
- Operating Temperature
Max.: 121 °C
(250 °F)Min.: -23 °C
(-9 °F)
Description
Extremely compact dimensions
Special anti-wear body treatment
Wide range of fixing options
Body or manifold feed options
Various applications: locking, pressing, marking, etc
Interchangeable with leading brands
Custom solutions available upon request
Used for blocking, pressing and movement of mold carriages, the CCP series cylinders are suitable for multiple applications thanks to their very small dimensions.

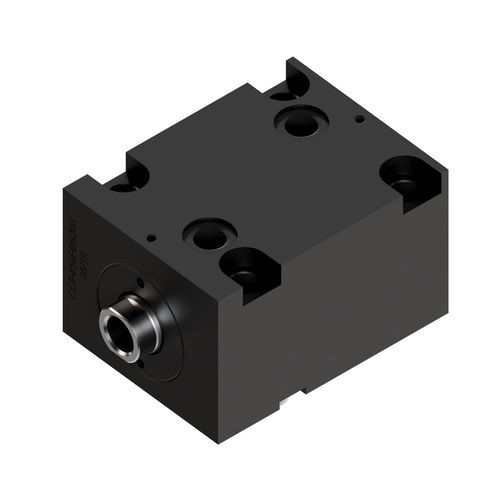

The version in the image includes fixing from above and feeding from above
