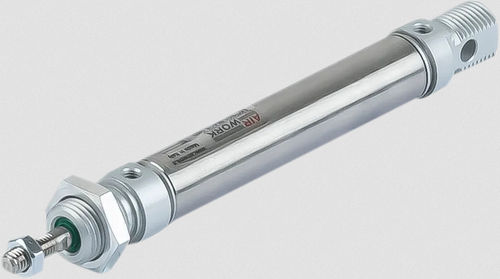

Pneumatic cylinder MC series

with piston roddouble-actingsingle-acting

- AISI 303 stainless steel rod, rolled to minimize friction - Rod and piston seals with the highest efficiency and longest durability - Metal piston to resist extreme loads - Bronze guide bushing to reduce the axial clearance when rod is fully extended - Availability in ATEX version Airwork ISO 6432 Micro Cylinders are manufactured to the highest quality standards and are available in bore sizes from 8mm to 25mm. The aluminium heads are secured to the stainless steel tube by a rolling process. MC Series cylinders can be manufactured in double acting or single acting (push or pull) configurations. The MC Series is available with either elastic or pneumatic cushioning and in both magnetic and non-magnetic versions. All necessary mounting accessories are also available. Airwork is capable of producing custom designs based on customer specifications. ISO cylinders are also available in a fully stainless steel version (see MX Series). Explore the range of products according to ISO 6432 standard. Technical features / Specifications: - Material: AISI 303 stainless steel rod, aluminium heads, bronze guide bushing - Configurations: Double acting or single acting (push or pull) - Cushioning: Elastic or pneumatic - Magnetic and non-magnetic versions available - ATEX version available - Custom designs on request Additional Information What compact pneumatic systems require today Modern automation architectures — electronic assembly lines, packaging machines, sorting and handling stations in the pharmaceutical sector — concentrate an increasing number of actuators in ever smaller spaces.
