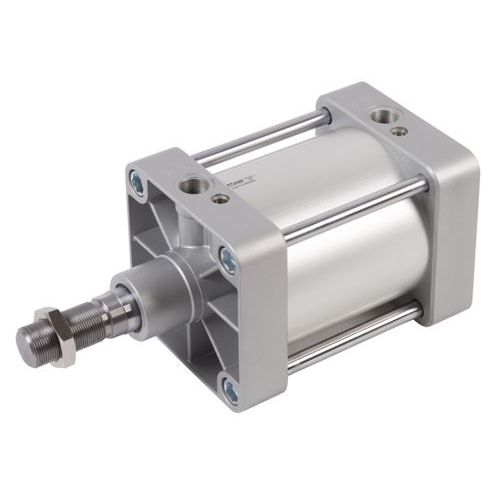

Pneumatic cylinder CQ seriestie-rodwith guided piston rodpiston
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Technology
- piston, with piston rod, magnetic piston, tie-rod, with guided piston rod
- Configuration
- double-acting
- Material
- stainless steel, aluminum
- Norms
- ISO, ISO 15552
- Protection class
- dust-proof, robust, for extreme conditions
- Applications
- industrial, for the automotive industry, for construction equipment, for OEM, for harsh environments
- Other characteristics
- for heavy loads, custom, high-resistance, threaded, with adjustable cushions, position-sensing, high-force, tandem, long-stroke, repairable, ATEX, high load capacity, low-temperature, extra-rigid, heat-resistant, multi-purpose
- Stroke
Min.: 25 mm
(0.984 in)Max.: 1,000 mm
(39.37 in)- Bore
Min.: 160 mm
(6.3 in)Max.: 250 mm
(9.84 in)- Pressure
Min.: 0 bar
(0 psi)Max.: 10 bar
(145.04 psi)- Operating Temperature
Min.: -20 °C
(-4 °F)Max.: 150 °C
(302 °F)
Description
Epoxy coating of the end caps for use in any working environment
High-resistance polyurethane seals
Wide range of stem seals for different applications, such as: Viton for high temperatures, two-component for heavy-duty use, metallic for extreme conditions, with bellows to protect the stem as well
Guide bushing in steel + PTFE to ensure perfect sliding even under high radial loads
Very competitive price
The Airwork CQ Series cylinders are manufactured in compliance with ISO 15552 standards (formerly ISO 6431 VDMA) and are available in bore sizes ranging from Ø160 to 250 mm.
Double-acting, cushioned, and magnetic versions are suitable where precision and reliability are required.
