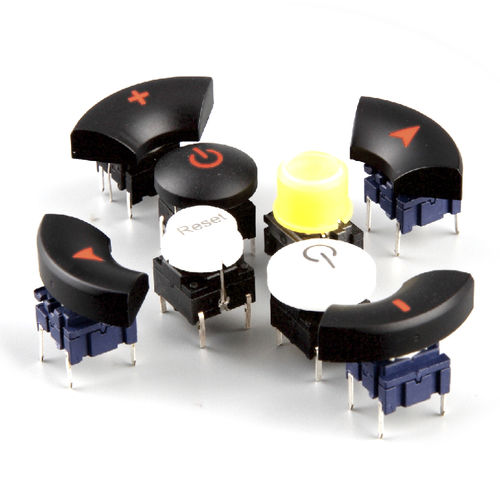

Tactile switch Mini Series

single-polePCBcustom

A wide range of mini and micro keys for your PCB boards, electronics applications. Illuminated versions available and custom laser engraved logos Small size. Right angle and vertical PCB ferminal Choice of painted colored caps. Laser marking service. Available with small quantity order. Studio equipment. Audio/Video products, Broadcast system, Instrumentation,. Telecommunications etc. Circuit:1P2T,2P2T Lock/Non-lock action with led Contact Rating: 0.1A 30V DC/0.1mA 5V DC Contact Resistance: 50m Q Max. 1.5V DC/ 100 mA, by method of votage drop Insulation Resistance: 100mQ Min.500 V DC Dielectric Strength:Breakdown is not allowable; 500V AC for 1 minute Actuation Force: 250 + 100gf Total Travel:1.5mm+0.3mm Operating Life: 50,000 cycles Operating Temperature: -20° Cto 70° C Frame: Polyamide (PA) +GF Actuator: Polyamide (PA)+GF Base:Polyamide (PA)+GF Terminal:Brass with silver plating
