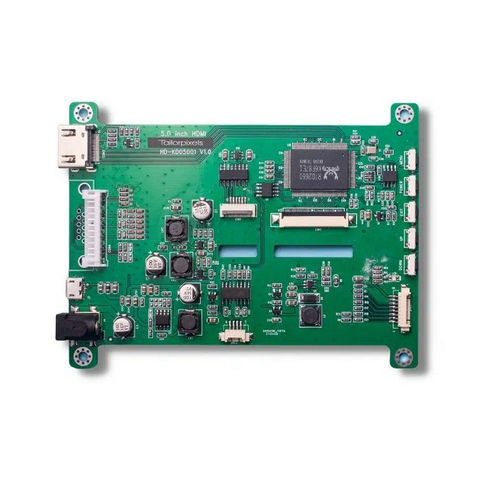

LCD module converter TBK050HD-01

videoRGB to HDMIRGB to VGA

TBK050HD-01 TFT Controller Board | RGB to HDMI and RGB to VGA converter | Support 5.0- inch TFT Displays, video signals and resolution to 800×480. Spport Capacitive Touchscreen and Speaker. The TFT board can be compatible with our 5.0-inch TFT TN module TTX050BHS-01 and IPS module TTX050BHS-03; The material is RoHS compliant; Custom harsh environment versions available with extended temperature coating; This controller board is for testing, evaluating or in final production and DIY HDMI TFT display. Function: 5.0″ LCD Controller Supply Voltage (V): 12 Typ Interface: RGB to HDMI/VGA LCM SIZE: 5.0″ TFT LCM Resolution supported (pixel): 800×480 PCB (W x H x D) (mm): 120.8×92.0x1.6 LCM Backlight Current (mA): 40 Typ Direct Current (without LCM ) (mA): 80 Typ LCM connector: 40PIN-0.5S CTP connector: 6PIN-1.0S HDMI connector: HDMI-019S VGA connector: 12PIN-2.0P Key connector: 8PIN-1.25S Speaker connector: 4PIN-1.25S Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -30 ~ +80
