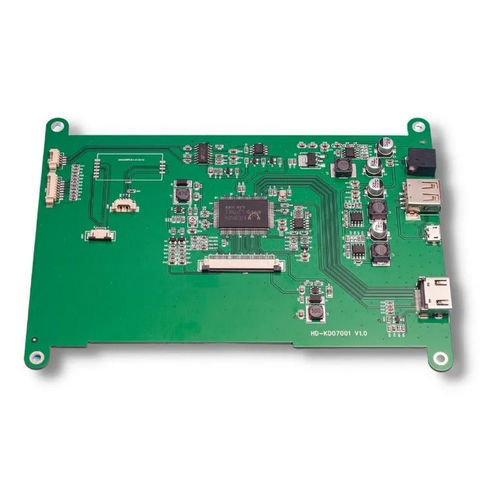

TBK070HD-01 TFT Controller Board | RGB to HDMI converter |
Support 7.0- inch TFT Displays, video signals and resolution of 800×480 and 1024×600 |
Spport Capacitive Touchscreen and Speaker |
The TFT board can be compatible with our 7.0-inch TFT TN module TTX070BHE-02.
The material is RoHS compliant;
Custom harsh environment versions available with extended temperature coating;
This controller board is for testing, evaluating, production and DIY HDMI TFT display.
Function: 7.0″ LCD Controller
Supply Voltage (V): 12 Typ
Interface: RGB to HDMI
LCM SIZE: 7.0″ TFT
LCM Resolution supported (pixel): 800×480,1024×600
PCB (W x H x D) (mm): 164.90×121.88×1.6
LCM Backlight Current (mA): 180 Typ
Direct Current (without LCM ) (mA): 80 Typ
LCM connector: 50PIN-0.5S
CTP connector: 6PIN-0.5S
HDMI connector: HDMI-019S
Key connector: 8PIN-1.25S
Speaker connector: 4PIN-1.25S
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -30 ~ +80
