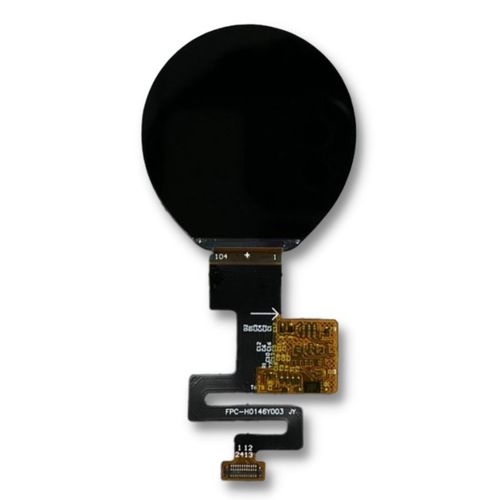

Round display module TTH145BRT-02TFTIPS412 × 412
Add to favorites
Compare this product
Characteristics
- Type
- TFT, IPS
- Format
- 412 × 412
- Screen size
- 1.45"
- Applications
- instrumentation, control, for control panels, for medical equipment
- Other characteristics
- QSPI, portable, round, smart
Description
TTH145BRT-02 | 1.45 inch IPS TFT LCD | Round | 412×412 Pixels | QSPI |
The small round display is designed especially for handheld devices and smart appliances.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in SPD2010 controller.
Optional custom solution with capacitive or resistive touchscreen.
The material is RoHS compliant.
Diagonal (inch)：1.45
Resolution (pixel)：412×412
Display Type：IPS
Display Mode：Transmissive
Optimal View：Full View
Touch Screen：Custom
Module Dimensions (mm) (W x H x D)：39.36×41.53×1.51
Active Area (mm) (W x H)：36.96×36.96
Luminance (cd/m2)：TBD
Interface：QSPI
Driver IC：SPD2010
Operational Temperature (°C)：-20 ~ +70
Storage Temperature (°C)：-30 ~ +80
