High-brightness display module TTG040XRE-02

TFT LCDIPShigh-resolution

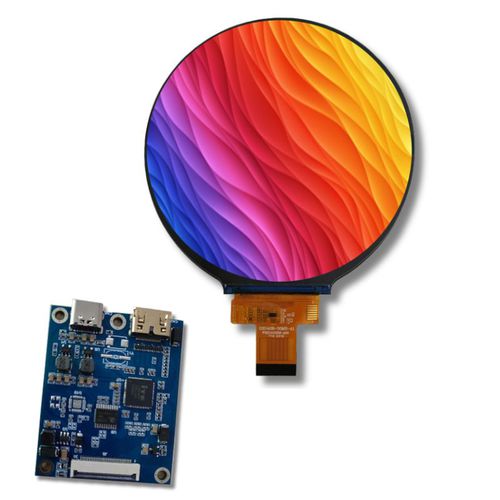

TTG040XRE-02 | 4.0″ IPS TFT LCD | Round | High Resolution | High Brightness | 800×800 Pixels | MIPI | With HDMI option The round display provides high resolution and is applicable to be embedded in the circle design, like meter interface. This TFT display provide a full view, people could see the quality display image from any angle. This Liquid Crystal Display has a built-in JD9365DA controller. Optional with capacitive touchscreen. The material is RoHS compliant. Diagonal (inch): 4.0″ Resolution (pixel): 800×800 Display Type: IPS Display Mode: Transmissive Optimal View: Full View Touch Screen: Optional Module Dimensions (mm) (W x H x D): 105.6 x109.87×2.21 Active Area (mm) (W x H): 101.52 x 101.52 Luminance (cd/m2): 1000 (other option: 320) Interface: MIPI (HDMI board option) Driver IC: JD9365DA Operational Temperature (°C): -20 ~ +70 Storage Temperature (°C): -25 ~ +75
