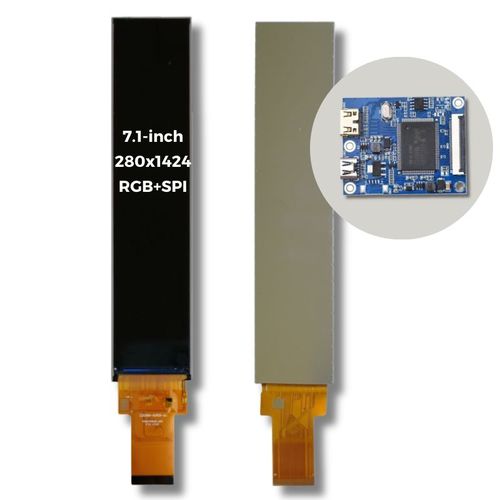

Bar shape display module TTG071BVV-01TFTIPS280 × 1424
Add to favorites
Compare this product
Characteristics
- Type
- TFT, IPS
- Format
- 280 × 1424
- Screen size
- 7.1"
- Applications
- industrial, instrumentation, control
- Other characteristics
- RGB, SPI, bar shape, stretched
- Width
38.2 mm
(1.5039 in)- Height
181.47 mm
(7.1445 in)
Description
TTG071BVV-01 | 7.1 inch IPS TFT LCD | 280×1424 Pixels | RGB+SPI | Stretched Bar LCD |
The vertical display has unique size ratio, is designed for commercial devices and auto industry.
This TFT display provide a full view, people could see the quality display image from any angle.
This Liquid Crystal Display has a built-in NV3052 controller.
Optional custom solution with capacitive touchscreen.
The material is RoHS compliant.
Diagonal (inch): 7.1″
Resolution (pixel): 280×1424 Pixels
Display Type: IPS
Display Mode: Transmissive
Optimal View: Full View
Touch Screen: Optional
Module Dimensions (mm) (W x H x D): 38.20×181.47×3.4
Active Area (mm) (W x H): 33.60×170.88
Luminance (cd/m2): 300
Interface: RGB+SPI
Driver IC: NV3052
Operational Temperature (°C): -20 ~ +70
Storage Temperature (°C): -30 ~ +80
