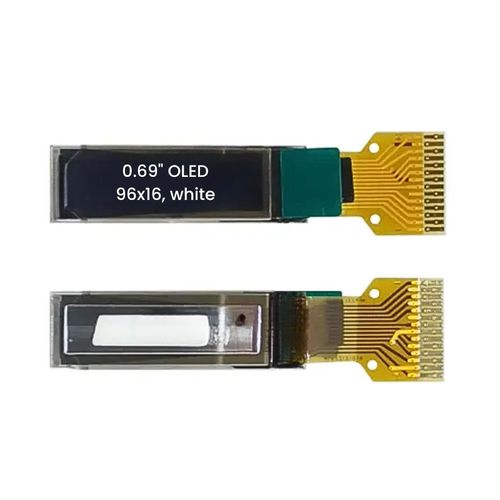

Integrated display module TOX069TSWIG02monochromeOLED96 x 16
Add to favorites
Compare this product
Characteristics
- Type
- monochrome, OLED
- Format
- 96 x 16
- Screen size
- 0.69"
- Applications
- instrumentation, for medical equipment
- Other characteristics
- I2C, portable, high refresh rate, integrated, for integration
- Width
24 mm
(0.9449 in)- Height
6.9 mm
(0.2717 in)
Description
TOX069TSWIG02 | 0.69-inch OLED | 96×16 Dots | Monochrome White | I2C Interface | SSD1312 |
The OLED provides bright white graphics on a black background with fast response along with high contrast visibility from any angle.
The display has a built-in SSD1312 controller, and is RoHS compliant.
Diagonal (inch): 0.69
Resolution (pixel): 96×16
Display Type: PMOLED
Color - : White
Optimal View: Full View
Voltage(V): 2.8
Module Dimensions (mm) (W x H x D): 24 x 6.9x 1.25
Active Area (mm) (W x H): 17.26 x3.18
Pixel pitch(mm): 0.18 x 0.2
Pixel size(mm): 0.16 x 0.18
Luminance (cd/m2): 250 Typ.
Interface: I2C
Driver IC: SSD1312
Operational Temperature (°C): -40 ~ +70
Storage Temperature (°C): -40 ~ +85
