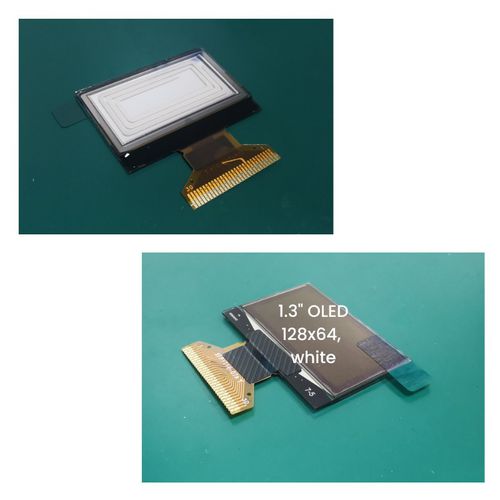

1.3" display module TOX130KSWLG01

OLEDmonochrome128 x 64

TOX130KSWLG01 | 1.3-inch OLED | 128×64 Dots | Monochrome White | IIC,SPI,MCU | CH1116 | The OLED provides bright white graphics on a black background with fast response along with high contrast visibility from any angle. The display has a built-in CH1116 controller and is RoHS-compliant. Diagonal (inch): 1.3 Resolution (pixel): 128×64 Display Type: PMOLED Color - : White Optimal View: Full View Voltage(V) - 2.8 Module Dimensions (mm) (W x H x D): 34.5 x 23.0 x 1.4 Active Area (mm) (W x H): 29.42 x 14.7 Pixel pitch(mm): 0.23 x 0.23 Pixel size(mm): 0.21 x 0.21 Luminance (cd/m2): 110 Typ. Interface: I2C/SPI/MCU Driver IC: CH1116 Operational Temperature (°C) - -40 ~ +70 Storage Temperature (°C) - -40 ~ +85
