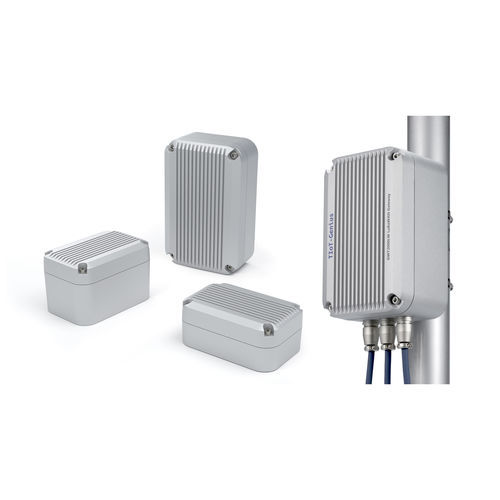

Distribution electrical enclosure DWH seriesDIN railwall-mountedaluminum
Add to favorites
Compare this product
Characteristics
- Function
- distribution
- Configuration
- wall-mounted, DIN rail
- Material
- aluminum
- Protection level
- IP65, waterproof, IP67
- Application
- industrial
- Other characteristics
- safety, for harsh environments
- Width
100 mm, 140 mm
(3.9 in, 5.5 in)- Height
Max.: 104 mm
(4.1 in)Min.: 63.5 mm
(2.5 in)- Depth
150 mm, 220 mm
(5.91 in, 8.66 in)
Description
IP68 high performance diecast aluminium box which withstands immersion in water up to 1m for 24 hours.
The top cover is designed with heat sink for efficient heat dissipation.
EMC shielding is achieved with the unfinished inner sides of the top cover and base, as well as the conductive silicone gasket.
This enclosure is suitable for use in severe environment such as for outdoor network devices, plant control equipment, meteorological instruments and more.
Specifications
See TAKACHI website for accessories and optional parts.
The top cover is designed with heat sink for efficient heat dissipation.
EMC shielding is achieved with the unfinished inner sides of the top cover and base, as well as the conductive silicone gasket.
This enclosure is suitable for use in severe environment such as for outdoor network devices, plant control equipment, meteorological instruments and more.
Specifications
- Material : ADC12 aluminium die-cast alloy
- Protection class : IP68
- Operating temperature : -40°C ~ +105°C
- EMC shielded
- Heat sink top cover
- 4 sizes available.
- Available in Metallic Silver.
See TAKACHI website for accessories and optional parts.
