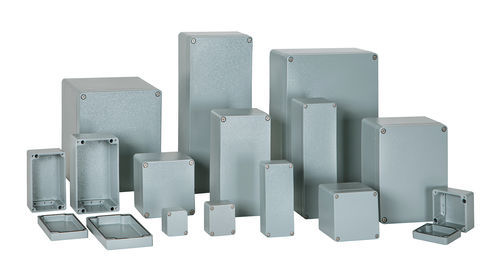

Distribution electrical enclosure AL seriescustomwall-mountedaluminum
Add to favorites
Compare this product
Characteristics
- Function
- distribution
- Type
- custom
- Configuration
- wall-mounted
- Material
- aluminum
- Protection level
- IP65, impact-resistant
- Width
Max.: 120 mm
(4.7 in)Min.: 46 mm
(1.8 in)- Height
Max.: 90 mm
(3.5 in)Min.: 31.5 mm
(1.2 in)- Depth
Max.: 250 mm
(9.84 in)Min.: 51 mm
(2.01 in)
Description
Overview
Available as built-to-order (BTO). IP65 protection class diecast aluminium enclosure designed for electrical and electronic applications. 35 standard sizes available; superior heat dissipation, heat resistance and oil resistance compared with plastic enclosures. Minimum order: 1 piece. Delivery time is listed in the product dimensions table.
Features
Product No. / Dimensions
Product No. | W (mm) × H (mm) × D (mm) | Recommended torque (N·m) | Lead time | Weight (g)
AL050503 | 46 × 31.5 × 51 | 0.8 ～ 1 | 2 months | 82 g
AL060603 | 64 × 34 × 58 | 0.8 ～ 1 | 2 months | 140 g
AL060605 | 64 × 46 × 58 | 0.8 ～ 1 | 2 months | 162 g
AL061003 | 64 × 34 × 98 | 0.8 ～ 1 | 2 months | 204 g
AL061005 | 64 × 46 × 98 | 0.8 ～ 1 | 2 months | 239 g
AL061503 | 64 × 34 × 150 | 0.8 ～ 1 | 2 months | 267 g
AL061505 | 64 × 46 × 150 | 0.8 ～ 1 | 2 months | 314 g
AL080806 | 80 × 57.5 × 75 | 0.8 ～ 1 | 2 months | 304 g
AL080807 | 80 × 70 × 75 | 0.8 ～ 1 | 2 months | 347 g
AL081306 | 80 × 58 × 125 | 0.8 ～ 1 | 2 months | 431 g
AL081307 | 80 × 71 × 125 | 0.8 ～ 1 | 2 months | 488 g
AL081806 | 80 × 57 × 175 | 0.8 ～ 1 | 2 months | 522 g
AL081807 | 80 × 70 × 175 | 0.8 ～ 1 | 2 months | 612 g
AL082506 | 80 × 57 × 250 | 0.8 ～ 1 | 2 months | 814 g
AL082507 | 80 × 70 × 250 | 0.8 ～ 1 | 2 months | 854 g
AL101008 | 100 × 80 × 100 | 0.8 ～ 1 | 2 months | 561 g
AL101608 | 100 × 80 × 160 | 0.8 ～ 1 | 2 months | 767 g
AL121208 | 120 × 80 × 122 | 1.0 | 2 months | 910 g
AL122208 | 120 × 80 × 220 | 1.0 | 2 months | 1280 g
AL122209 | 120 × 90 × 220 | 1.0 | 2 months | 1400 g
... (additional AL series model rows available in the product table with per-model dimensions, recommended torque, lead time and weight)
Available as built-to-order (BTO). IP65 protection class diecast aluminium enclosure designed for electrical and electronic applications. 35 standard sizes available; superior heat dissipation, heat resistance and oil resistance compared with plastic enclosures. Minimum order: 1 piece. Delivery time is listed in the product dimensions table.
Features
- Material: Diecast aluminium (impact resistant)
- Protection class: IP65
- Heat dissipation, heat resistance and oil resistance superior to plastic boxes
- Self-tapping captive cover screws that lock into pre-drilled holes for secure fastening
- Color: Gray (similar to RAL7001)
- Operating temperature and recommended torque range noted per model in the table
- Built-to-order (BTO) — minimum order: 1 piece
Product No. / Dimensions
Product No. | W (mm) × H (mm) × D (mm) | Recommended torque (N·m) | Lead time | Weight (g)
AL050503 | 46 × 31.5 × 51 | 0.8 ～ 1 | 2 months | 82 g
AL060603 | 64 × 34 × 58 | 0.8 ～ 1 | 2 months | 140 g
AL060605 | 64 × 46 × 58 | 0.8 ～ 1 | 2 months | 162 g
AL061003 | 64 × 34 × 98 | 0.8 ～ 1 | 2 months | 204 g
AL061005 | 64 × 46 × 98 | 0.8 ～ 1 | 2 months | 239 g
AL061503 | 64 × 34 × 150 | 0.8 ～ 1 | 2 months | 267 g
AL061505 | 64 × 46 × 150 | 0.8 ～ 1 | 2 months | 314 g
AL080806 | 80 × 57.5 × 75 | 0.8 ～ 1 | 2 months | 304 g
AL080807 | 80 × 70 × 75 | 0.8 ～ 1 | 2 months | 347 g
AL081306 | 80 × 58 × 125 | 0.8 ～ 1 | 2 months | 431 g
AL081307 | 80 × 71 × 125 | 0.8 ～ 1 | 2 months | 488 g
AL081806 | 80 × 57 × 175 | 0.8 ～ 1 | 2 months | 522 g
AL081807 | 80 × 70 × 175 | 0.8 ～ 1 | 2 months | 612 g
AL082506 | 80 × 57 × 250 | 0.8 ～ 1 | 2 months | 814 g
AL082507 | 80 × 70 × 250 | 0.8 ～ 1 | 2 months | 854 g
AL101008 | 100 × 80 × 100 | 0.8 ～ 1 | 2 months | 561 g
AL101608 | 100 × 80 × 160 | 0.8 ～ 1 | 2 months | 767 g
AL121208 | 120 × 80 × 122 | 1.0 | 2 months | 910 g
AL122208 | 120 × 80 × 220 | 1.0 | 2 months | 1280 g
AL122209 | 120 × 90 × 220 | 1.0 | 2 months | 1400 g
... (additional AL series model rows available in the product table with per-model dimensions, recommended torque, lead time and weight)
