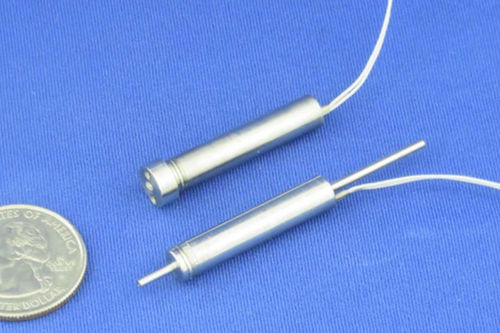

Direct-operated solenoid valve HVA/HVAL series 2-waywatercompact
Add to favorites
Compare this product
Characteristics
- Control
- direct-operated
- Ports/positions
- 2-way
- Medium
- water
- Body
- compact
- DN
0.4 mm
(0.016 in)- Temperature
Max.: 70 °C
(158 °F)Min.: -20 °C
(-4 °F)
Description
High Pressure Ultra-Small Solenoid Valve - HVA/HVAL Series
2 MPa pressure rating.
Compact and lightweight.
ISO19683 vibration and shock requirements met (HVA-2-MFE).
Please feel free to contact us to discuss more details about the HVA and HVAL series.
Model Number - HVA-2-N1E
Orifice（mm） - 0.4 mm
Fluid Temperature Range - -20 – 70 ˚C *
Rated Voltage - 12 or 24 VDC
Operating Pressure - 0 – 2 MPa (Inlet Port)
Seal Material - EPDM (Optionally FKM, FFKM)
Weight - 8 g
