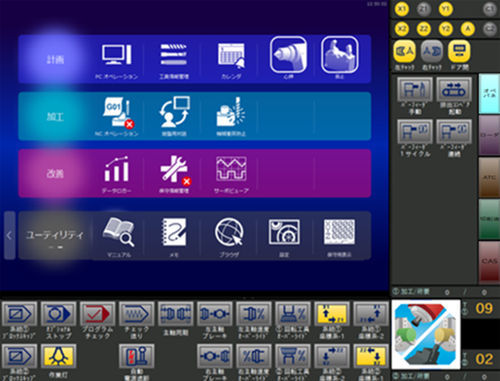

iHMI is a Human–Machine Interface software by TAKISAWA designed to streamline operator workflows on machine tools, support program creation and editing, and provide in‑process functions for planning, machining and error prevention on the shop floor.

Key features

• Careless‑mistake prevention functions to reduce operator errors
• iHMI Machining Program Creation Support for program editing and creation
• Conversational programming for lathe (PANEL iH Pro)
• Machine Collision Avoidance (PANEL iH Pro) using 3D simulation

Process Cycle
Process Cycle allows creation and management of turning and milling cycles directly from the program editing screen, enabling standardized and repeatable process flows.

TAKISAWA original functions
Includes TAKISAWA‑specific screens and modules as standard; the interface supports instant screen switching via a vertical soft key for fast access to required functions.

Tailstock screen
Set tailstock pressing position, thrust and related parameters directly from the screen for accurate workholding control.

Steady Rest screen
Configure steady rest position from the display to control work support during turning operations.

ATC screen
Display automatic tool changer (ATC) status, pot numbers and tool management information for tool change monitoring.

Machine Collision Avoidance (PANEL iH Pro)
Performs pre‑processing simulation using a 3D machine model and machine preview position to detect potential collisions and stop the machine safely; blanks and jigs can be defined from standardized shapes or model files such as STL and DXF exported from CAD.

FANUC iCAP T (PANEL iH Pro)
Accepts CAD input modes (symbolic key input plus 2D/3D DXF and IGES formats), supports milling including slant surfaces as well as turning, and reduces programming time through automatic process definition.

Technical specifications

• Brand: TAKISAWA Machine Tool Co., Ltd.
• Product: Human–Machine Interface software (iHMI)
• Model / designation: iHMI (PANEL iH Pro features available)
• PANEL iH Pro features: conversational lathe programming, Machine Collision Avoidance, FANUC iCAP T support
• Simulation / collision checking: 3D machine model simulation; supports blanks/jigs from STL and DXF
• CAD formats supported: 2D/3D DXF, IGES; accepts model files such as STL and DXF
• Processes supported: turning cycles and milling cycles; supports milling including slant surfaces
• Interface features: vertical soft key for instant screen switching; dedicated tailstock, steady rest and ATC screens
• Program creation: iHMI Machining Program Creation Support; automatic process definition to reduce programming time
• Quality / partnerships: member of CGTech "Technology Partner Program" (Vericut compatibility)
