Simulation software TiwaP-1

visualizationprogramminganimation

Dialogue software provides interactive support for CNC program creation, simulation and automatic operation to reduce operator labor and speed up program verification.

Overview

• Interactive dialog-based software for simplified CNC program input, simulation and automatic execution, adapted to Takisawa machine tools and compatible controls.
• Designed to reduce need for direct G-code entry by operators and to shorten programming and validation cycles.

TiwaP-1 (interactive programming system)

• Complete interactive environment for creating, simulating and running machining programs without requiring G‑code expertise.
• Easy-to-use input method with symbolic keys and dialog screens to generate machining sequences.

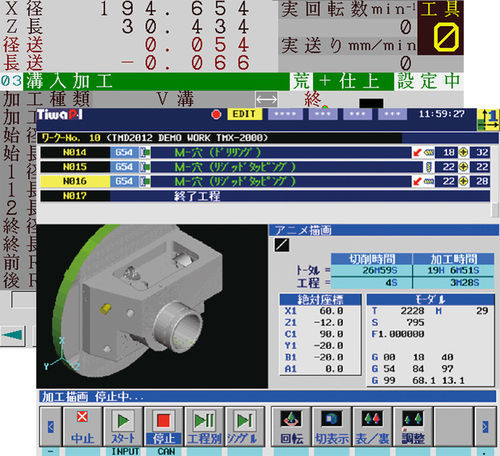

• Program verification through 3D animation of cutting results and tool path visualization.
• Automatic recognition of spindle and process order during operation to optimize spindle control and C‑axis zero return.

RAKU-RAKU TURN

• Dialog software variant offered as RAKU-RAKU Expert for TAC series CNC lathes.
• Full support for programming 2‑axis turning, including simulation and automated program execution to streamline lathe workflows.

FANUC iCAP T (PANEL iH Pro)

• Supports CAD data import (2D/3D DXF and IGES formats) in addition to symbolic key input.
• Supports milling operations including slanted surfaces as well as turning, enabling turning/milling applications.
• Automatic process definition features reduce programming time by generating machining sequences from CAD and dialog inputs.

Features / technical specifications

• Brand: Takisawa Machine Tool Co., Ltd.
• Model: TiwaP-1
• Main functions: interactive program input, program simulation (3D animation), program execution / automatic operation.
• Supported CNC types: TAC series (RAKU-RAKU Expert), general lathes and milling-capable controls via FANUC iCAP T.
• Supported CAD formats: DXF, IGES (2D/3D).
• Machining types supported: turning (2‑axis), milling including slant surfaces.
• Automation features: automatic spindle control recognition, automatic C‑axis zero return, automatic process definition to reduce programming time.
