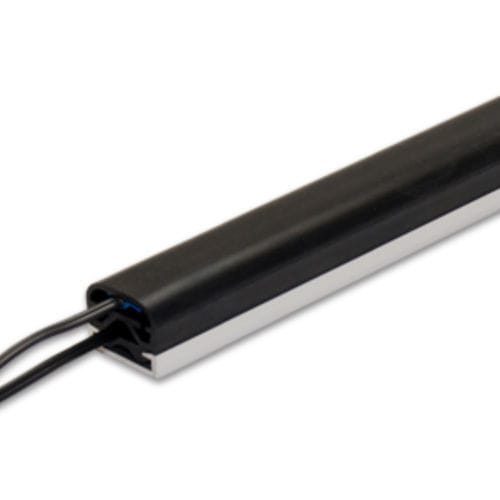

High-sensitivity safety edge TS-18

Tapeswitch™ TS-18 Mini Sensing Edges are designed for limited space applications where pressure sensitive safety edges with end caps are desirable for cosmetic or environmental reasons. The TS-18 sensing edges housing material is EPDM. Mounting is by means of snap-in aluminum channel. The EPDM rubber housing is resistant to water, oil, hydraulic fluids, and coolants and has a wider temperature range than PVC. The internal switching element is rated for millions of operations across surface. TS-18 Pressure Sensitive Sensing Edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules. Features & Benefits • Low profile for limited space applications • End caps for cosmetic or environmental concerns • Some over-travel allows compression after activation • 4-conductor Fail-Safe wiring is standard Typical Applications • Pinch protection on machinery edges, and medical tables • Signaling or personnel protection on machining centers • General switching applications requiring a large switching surface
