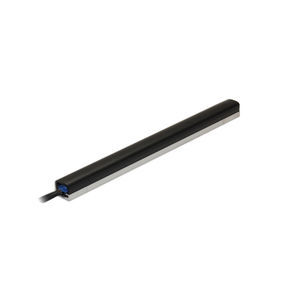

Security safety edge TS-67

Tapeswitch™ TS-67 Omni-Directional Sensing Edges are unique, dual-switch products that exhibit uniform high sensitivity when deflected in any direction – top, side, or at an angle. After actuation, these pressure sensitive safety edges provide 1 inch of protective overtravel cushioning. Mounting is by means of snap-in PVC channel. The internal switching elements are rated for millions of operations across surface. Originally designed for the specialized requirements of revolving doors, TS-67 pressure sensitive sensing edges are suitable for any application requiring a highly sensitive and flexible edge. They are especially appropriate when the direction of impact varies. TS-67 pressure sensitive safety edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules. Features & Benefits •   Dual-switch design for activation in many directions •   Fast to acting top activation with intermediate side activation •   Immediate activation provides maximum protection •   1 inch of overtravel for cushioning after contact with a person or object •   4-conductor Fail-Safe wiring is standard Typical Applications •   Powered revolving doors or gates •   Swinging doors on machinery •   Fast-moving powered closures •   Impact protection on moving machinery •   Pinch protection on sliding surfaces •   Applications requiring multi-directional sensing
