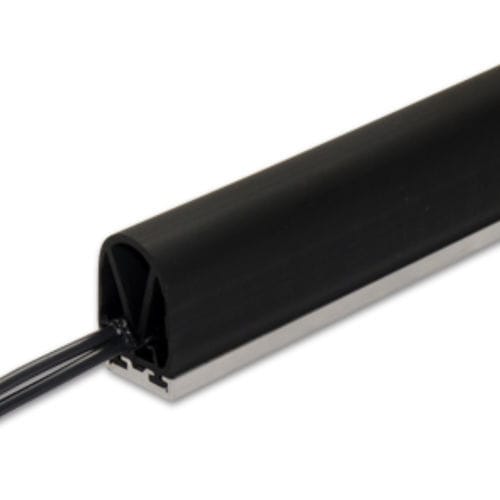

High-sensitivity safety edge TS-46

Tapeswitch™ TS-46 Sensing Edges are general purpose, medium profile, pressure sensitive safety edges. They have some compliance before activation, eliminating nuisance tripping, and provide about ¾ inch of overtravel cushioning after activation. Mounting is in crimpable aluminum channel (flat or angle), which is more tamper-resistant than snap-in channel. The Santoprene TPE housing is resistant to water, oil, hydraulic fluids, and coolants. The internal switching element is rated for millions of operations across surface. All TS-46 Pressure Sensitive Sensing Edges are supplied with 4-conductor Fail-Safe wiring and are compatible with Tapeswitch™ Safety Interface Modules. Features & Benefits • Compliance before activation eliminates nuisance tripping • ¾ inch over travel provides cushioning after activation • 4-conductor Fail-Safe wiring is standard Typical Applications • Obstruction detection on power operated doors, gates, and stage lifts • Collision detection on moving conveyors or platforms • General applications for small sensing bumpers
