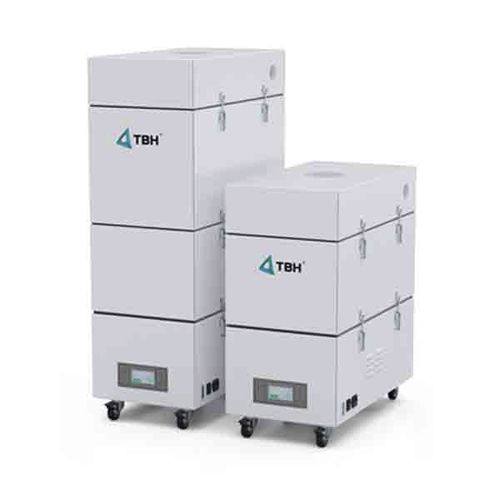

Industrial fume extractor LN 260

laseractivated carbon filterwith HEPA filter

Overview
This modular fume extraction unit is designed for industrial extraction of laser smoke and other fine airborne particles. It features a brushless motor with 1.1 kW power and an extended filtration area compared with the LN230. The unit supports continuous operation and includes a serial interface for process integration.

Product variants

• LN 260 — Filter configuration: Pre-filter mat (F5), Particle filter (H13), Activated carbon
• LN 260 A — Filter configuration: Pre-filter mat (F5), Activated carbon
• LN 260 Z — Filter configuration: Z-Linepanel Plus filter (F7), Particle filter (H13)
• LN 260 ZA — Filter configuration: Z-Linepanel Plus filter (F7), Particle filter (H13), Activated carbon

Technical data
Air volume flow: max. 320 m³/h
Effective air flow: 50 – 250 m³/h
Max. static pressure: 20000 Pa
Voltage: 100–240 V
Frequency: 50/60 Hz
Motor power: 1.1 kW
Sound level: approx. 62 dB(A)
Serial interface: Sub-D 25-pin

Features / technical specifications

• Brushless motor, power 1.1 kW
• Extended filter area compared with LN230
• Effective flow range: 50–250 m³/h; peak flow up to 320 m³/h
• Max. static pressure: 20,000 Pa
• Power supply: 100–240 V, 50/60 Hz
• Approximate sound level: 62 dB(A)
• Serial control interface: Sub-D 25-pin for integration and monitoring
• Available filtration options: pre-filter (F5), particle filter (H13), Z-Linepanel Plus (F7), activated carbon (depending on variant)
