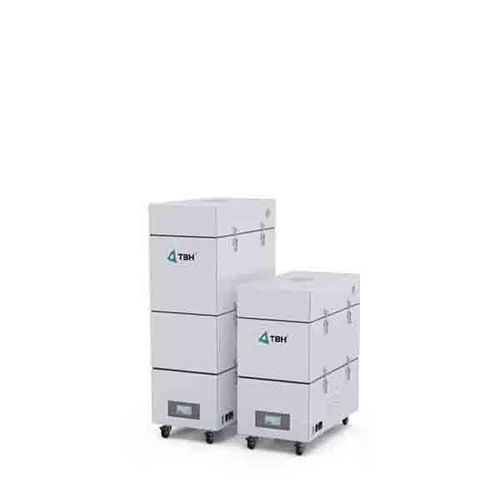

Dust extraction unit LN 265

odorvapor

Short description
Modular extraction unit of the LN 200 series. Motor power: 1.8 kW. Declared extraction capacity up to 400 m³/h; effective air volume flow 50–500 m³/h. Designed for local extraction of dust, fumes and odors in industrial processes.

Technical data

• Air volume flow (max): 600 m³/h
• Effective air volume flow: 50–500 m³/h
• Max. static pressure: 15000 Pa
• Voltage: 120/230 V
• Frequency: 50/60 Hz
• Motor power: 1.8 kW
• Sound level: approx. 65 dB(A)
• Serial interface: 25-pin Sub-D

Product variants

• LN 265 — Filter configuration: Pre-filter mat (F5), particle filter (H13), activated carbon
• LN 265 A — Filter configuration: Pre-filter mat (F5), activated carbon
• LN 265 Z — Filter configuration: Z-Linepanel Plus filter (F7), particle filter (H13)
• LN 265 ZA — Filter configuration: Z-Linepanel Plus filter (F7), particle filter (H13), activated carbon

Characteristics / technical specifications

• Modular extraction unit, LN 200 series
• Motor: 1.8 kW
• Declared extraction capacity: up to 400 m³/h
• Air volume flow: up to 600 m³/h (effective range 50–500 m³/h)
• Max. static pressure: 15000 Pa
• Supply: 120/230 V, 50/60 Hz
• Sound level: approx. 65 dB(A)
• Serial interface: 25-pin Sub-D
• Available filter options: Pre-filter mat (F5), Z-Linepanel Plus (F7), Particle filter (H13), Activated carbon
