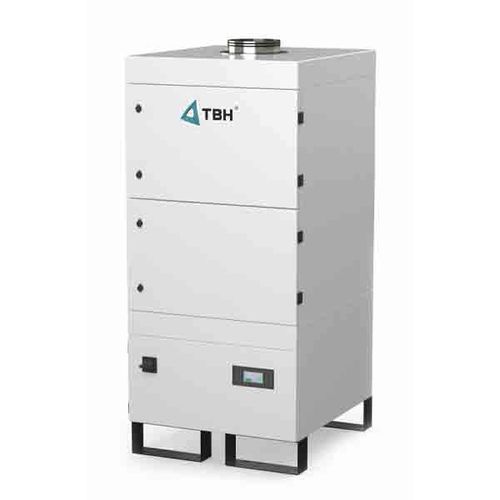

Vapor extraction unit LN 610

gasdustodor

Short description

The modular LN 610 is a centralized extraction unit designed to serve multiple extraction points. It features integrated control electronics for automation and is available in several versions to match filtration and airflow requirements in industrial environments.

Product variants

• LN 610 Standard — Filter configuration: Pre-filter mat (M5), particle filter (H13), activated carbon
• LN 610 A — Filter configuration: Pre-filter mat (M5), activated carbon
• LN 610 ZS — Filter configuration: Z+ F9, particle filter (H14)
• LN 610 ZSA — Filter configuration: Z+ F9, particle filter (H14), activated carbon; Air flow rate: 300-1300 m³/h

Technical data (table)

Air volume flow
max. 2000 m³/h
Effective air volume flow
300-1500 m³/h
Frequency
50/60 Hz
Engine power
3 kW
Sound level
approx. 70 db(A)
Serial interface
Harting (surface-mounted housing with connector insert HAN6B, 24-pin)
Type of drive
Brushless motor

Features / technical specifications

• Intended use: Central extraction unit for several extraction points
• Available versions: STANDARD, A, ZS, ZSA
• Control electronics suitable for integration in automation systems
• Air volume flow (max): 2000 m³/h
• Effective air volume flow: 300-1500 m³/h (variant-dependent)
• Frequency: 50/60 Hz
• Engine power: 3 kW (brushless)
• Sound level: approx. 70 dB(A)
• Serial interface: Harting connector (HAN6B, 24-pin) for automation connectivity
• Filter options by variant: M5 pre-filter, H13/H14 particle filters, Z+ F9 stage, activated carbon
