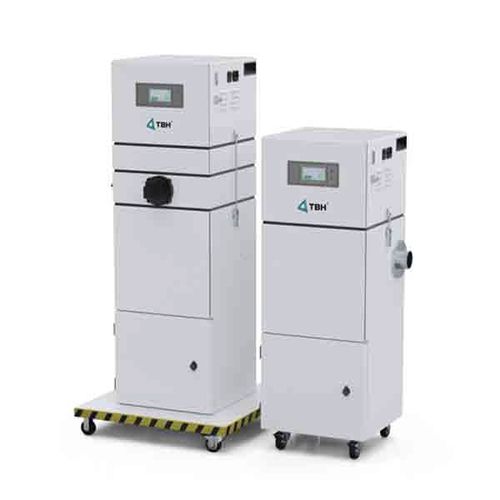

Cartridge dust collector FP 150

automaticself-cleaning

Product description
The FP 150 is an industrial filtration unit for extraction of dust and particulate contaminants in manufacturing and process environments. It is offered as a basic model with an antistatic filter cartridge (dust class M) and can be equipped with an H13 particle filter for an extended filter area, automatic cleaning and an activated carbon filter for gas and odor adsorption. The unit provides multiple operating modes for filter cleaning and is designed for integration into process control.

Product variants / options

• Basic model: antistatic filter cartridge, dust class M
• Extended filter area: H13 particle filter
• Automatic filter cleaning with selectable modes
• Activated carbon filter for odor and vapor removal
• Wide input voltage range: 100–240 V, 50/60 Hz

Technical data
Air volume flow: max. 280 m³/h
Effective air volume flow: 50–250 m³/h
Max. static pressure: 20000 Pa
Voltage: 100–240 V
Frequency: 50/60 Hz
Engine power: 1.1 kW
Sound level: approx. 64 dB(A)
Type of drive: Brushless motor
Serial interface: 25-pin Sub-D

Characteristics / technical specifications

• Air volume flow — max. 280 m³/h
• Effective air volume flow — 50–250 m³/h
• Max. static pressure — 20000 Pa
• Voltage — 100–240 V
• Frequency — 50/60 Hz
• Engine power — 1.1 kW (brushless)
• Sound level — approx. 64 dB(A)
• Filtration — antistatic cartridge (dust class M); optional H13 particle filter
• Optional activated carbon filter for gases/odors
• Filter cleaning — automatic and selectable operating modes
• Interface — serial 25-pin Sub-D for control and integration
