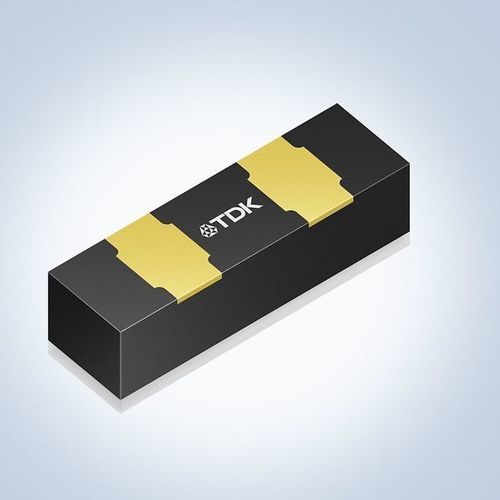

NTC temperature sensor T850 SMT

waterproofruggedhalogen-free

Overview
TDK's T850 SMT NTC sensor (B57850T0103*) is designed for accurate surface temperature measurement in demanding industrial environments. It provides high moisture resistance and fast thermal response through excellent thermal coupling to the measurement surface. Rated for operation from -40 °C to +150 °C, the sensor is waterproof for up to 500 hours and features an aluminum oxide ceramic surface offering a dielectric strength of 2500 V AC for 60 s. The lead- and halogen-free construction includes phosphor bronze electrodes and allows contacting by piston soldering, laser soldering, micro-resistance welding or TIG welding.

Main applications

• Heating and building services engineering
• Heat sinks of power modules
• Temperature monitoring of industrial processes

Main features and benefits

• Dielectric strength: 2500 V AC for 60 s
• High moisture resistance — waterproof up to 500 hours
• Wide operating range: -40 °C to +150 °C
• Lead- and halogen-free construction
• Aluminum oxide ceramic surface for electrical isolation and robust operation

Caractéristiques / spécifications techniques

• Model family / name: T850 SMT NTC sensor
• Ordering code examples: B57850T0103F000 (10,000 Ω nominal at 25 °C, tolerance 1%), B57850T0103G000 (tolerance 2%)
• Operating temperature range: -40 °C to +150 °C
• Waterproof / moisture resistance: waterproof up to 500 hours
• Dielectric strength: 2500 V AC for 60 s
• Housing / surface material: aluminum oxide ceramic surface
• Dimensions (L x W x H): 10 x 3 x 3 mm
• Electrodes: phosphor bronze
• Contacting / attachment methods: piston soldering, laser soldering, micro-resistance welding, TIG welding
• Lead- and halogen-free construction
