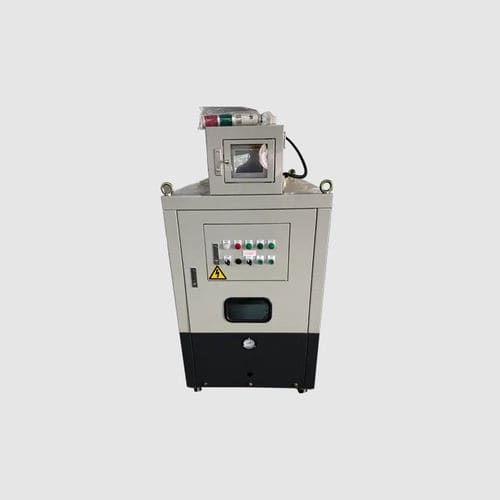

Industrial vacuum system SV-2

Product Overview

• The vacuum system provides negative pressure to the die during die-casting operations.
• Vacuum die-casting improves casting density, eliminates surface flow marks and internal gas porosity, reduces casting difficulty and increases the yield rate.
• Using vacuum reduces die wear, extends die service life and enhances the casting's resistance to pressure, leakage and weldability.

Specification
MODEL: SV-2
Applied to die-casting machines: 800 Ton and below
Nominal displacement of vacuum pump: 63 m3/hr (50Hz) / 76 m3/hr (60Hz)
Nominal motor rating of vacuum pump: 1.8 kW (50Hz) / 2.2 kW (60Hz)
Volume of tank: 150 L
Dimensions (mm): 1150(L) x 600(W) x 1150(H)

Technical characteristics / specifications

• Model: SV-2
• Applicable to die-casting machines up to 800 Ton
• Nominal displacement: 63 m3/hr (50Hz); 76 m3/hr (60Hz)
• Nominal motor rating: 1.8 kW (50Hz); 2.2 kW (60Hz)
• Tank volume: 150 L
• Dimensions (L x W x H): 1150 x 600 x 1150 mm
