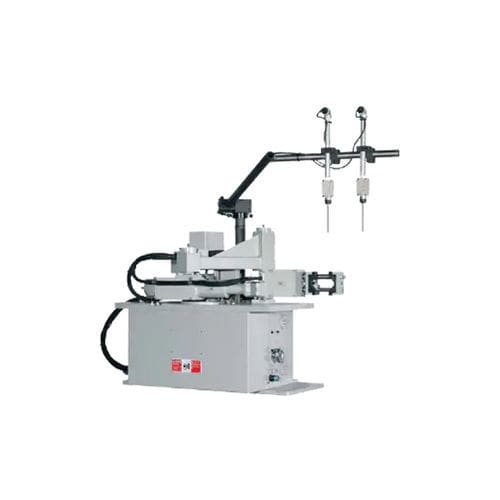

Hydraulic extractor SE series

Hydraulic extractor - SE series - Technology Base Corporation
Hydraulic extractor - SE series - Technology Base Corporation
Add to favorites
Compare this product

Characteristics

Type
hydraulic

Description

Overview

  • Automatic extraction arm for hydraulic/mechanical presses, available in models SE-15C, SE-35C, SE-65C and SE-80C. Designed for controlled part removal and indexing after stamping or molding operations.


Features

  • VF control for fast and stable arm operation.
  • Specially designed chucking arm to remove parts that do not fall off easily and to ensure long service life.
  • Waterproof, anti-dusting and anti-splash construction for operation in production environments.
  • Selection switch for setting and removing parts and for confirming quantity.
  • Clamp withdraw: 90°; Revolve degree: 90°.
  • Air pressure: 5 Kg/cm2; Operate voltage: DC24V; Power voltage: AC220V / AC380V.


Specifications

  • Applied D.C.M. (ton): SE-15C: 100~200T; SE-35C: 250~400T; SE-65C: 500~650T; SE-80C: 800T
  • Extract stroke (mm): SE-15C: 960; SE-35C: 1199; SE-65C: 1890; SE-80C: 2167
  • Drag stroke (mm): SE-15C: 150; SE-35C: 200; SE-65C: 300; SE-80C: 300
  • Adjustment for die thickness (mm): ±100 (all models)
  • Clamping diameter (mm): SE-15C: 40~70; SE-35C: 50~80; SE-65C: 70~95; SE-80C: 80~120
  • Clamp withdraw / Revolve degree: 90° (all models)
  • Air pressure: 5 Kg/cm2 (all models)
  • Power voltage: AC220V / AC380V (all models)
  • Operate voltage: DC24V (all models)
  • Machine weight (Kg): SE-15C: 233; SE-35C: 285; SE-65C: 440; SE-80C: 482
