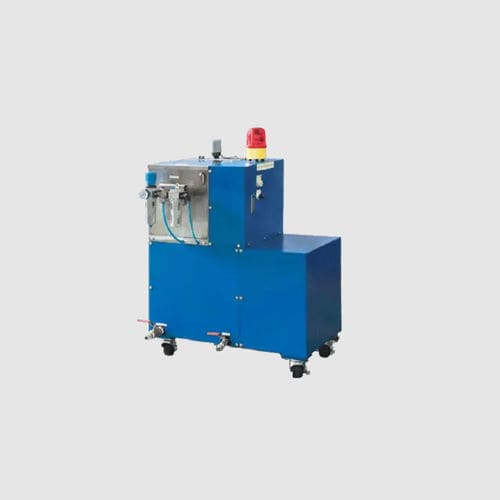

Diluter SF-25B

Diluter - SF-25B - Technology Base Corporation
Diluter - SF-25B - Technology Base Corporation
Add to favorites
Compare this product

Description

Product overview
  • Automated dilution and dosing system for release agents, model SF-25B, designed for integration with SS-series auto sprayers.
  • Adjustable dilution ratio and high-flow diaphragm pump for continuous industrial operation.
  • Integrated level sensors and alarm functions for reliable fluid and pressure monitoring.


Key features
  • Stable, easily set dilution rate (40–330) compatible with dosing systems.
  • Wide dilution range and adjustable flow rate to fit process requirements.
  • High-capacity diaphragm pump with stable outlet pressure and maximum flow of 159 L/min.
  • Lower-level sensors for release agent and for diluted fluid to prevent dry running.
  • Alarm functions for low water input pressure and low diluted-fluid output pressure.
  • Electric supply: AC 220V; control/operation voltage: DC 24V.


Technical specifications
  • Applied to auto sprayer: SS-15 (max. 4 units) or SS-35 (max. 4 units); SS-65 (max. 2 units) or SS-80 (max. 2 units)
  • Dilution rate: 40–330
  • Tank volume: 38 Liters
  • Water input pressure: 0.1–8 Bar
  • Water temperature range: 5°C–40°C
  • Output pressure: 2–5 Kgf/cm²
  • Maximum flow rate of pump: 159 Liters/minute
  • Air pressure: 5 Kgf/cm²
  • Air consumption: 200 Liters/minute
  • Power voltage: AC 220V
  • Operation voltage: DC 24V
  • Dimension (L x W x H): 850 x 600 x 1050 mm
  • Net weight: 83 kg


Compatibility & applications
  • Designed to feed release agent to SS-series automatic sprayers in production lines and finishing stations.
  • Suitable for continuous dosing in moulding and coating applications requiring controlled dilution.


Maintenance & safety
  • Accessible components for straightforward maintenance and servicing.
  • Operate within recommended water temperature (5°C–40°C) and input pressure (0.1–8 Bar).
  • Ensure compressed air supply at 5 Kgf/cm² and sufficient flow (200 L/min).
  • Follow local electrical and installation standards for AC 220V and DC 24V systems.
