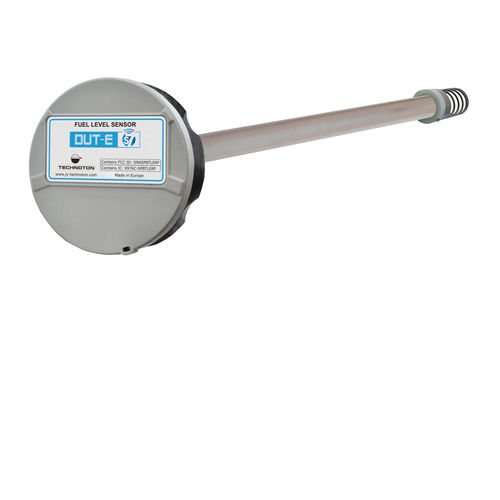

Capacitive level sensor DUT-E S7
for fuelfor oilwireless

capacitive level sensor
capacitive level sensor
capacitive level sensor
Add to favorites
Compare this product


Characteristics

Technology
capacitive
Medium
for fuel, for oil
Interface
wireless
Applications
fuel tank
Other characteristics
explosion-proof
Level range

Min.: 70 mm
(2.76 in)

Max.: 600 mm
(23.62 in)

Process temperature

Min.: -30 °C
(-22 °F)

Max.: 80 °C
(176 °F)

Description

DUT-E S7 wireless sensor allows to measure current fuel volume and its changes in a fuel tank. DUT-E S7 is used as a part of vehicle telematics system (GPS vehicle tracking system) and provides reliable information on remaining fuel volume, fuel tank fill-up and draining volumes and helps fleets to set up clear fuel accounting and prevent fuel theft from vehicle’s tank. DUT-E S7 wireless fuel level sensor is also used for fuel level monitoring in stationary tanks. Wireless data transfer is carried out using S7 Technology via BLE channel. BLE signal from DUT-E S7 can be received by compatible vehicle tracking unit (telematics unit) and/or any Android device. DUT-E S7 can also be used as a “night watchman” to alert driver on fuel theft from vehicle’s tank, for example, when resting at night parking.
