Air hose SA10 MASTERSAN
steelpolyolefinfor ventilation

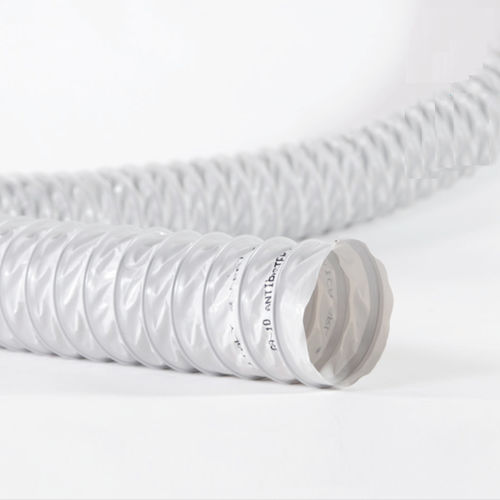

Air hose - SA10 MASTERSAN - TECNICA - steel / polyolefin / for ventilation
Air hose - SA10 MASTERSAN - TECNICA - steel / polyolefin / for ventilation
Air hose - SA10 MASTERSAN - TECNICA - steel / polyolefin / for ventilation - image - 2
Add to favorites
Compare this product

Characteristics

Use
for air
Material
steel, polyolefin
Applications
for ventilation, air conditioning, fire, building
Norms
DIN
Other characteristics
flexible, microbe-resistant, spiral wire
Inner diameter

Min.: 80 mm
(3.15 in)

Max.: 406 mm
(15.984 in)

Pressure

Min.: 0 Pa
(0 psi)

Max.: 1,961.33 Pa
(0.284 psi)

Temperature

Min.: -20 °C
(-4 °F)

Max.: 110 °C
(230 °F)

Delivered length

10 m
(32'09" )

Description

Flexible hose made of addivated polyolefin resins film with anti-bacterial, antimildew and anti-viral material protection with steel wire helix. SPECIFICATIONS COLOR: Grey CURVATURE RADIUS: 0,6 x ø AIR SPEED: max 20m/sec PRESSURE: max 200mm ca FIRE REACTION : CLASS IT: Class 1 (D.M. 26/06/84) CLASS EU: Class B-s1, d0 (EN 13823:2010) CLASS DE: Class B2-0.095mm (DIN 4102 Teil 1 p.6.2) CLASS FR: Class M1 (AFNOR NF P 92-507 § 3.1.2) MED/3.18f – (2014/90/UE) – Surface materials and floor coverings with low flame-spread characteristics: f) Combustible ducts membrane GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: IP, EA, MR WELL: MATERIALS, COMMUNITY BREEAM: MAN, WST Green Building Completo 2
