Air hose AL/SA MASTERSANsteelpolyolefinaluminum
Add to favorites
Compare this product
Characteristics
- Use
- for air
- Material
- steel, polyolefin, aluminum
- Applications
- construction, air conditioning, building
- Other characteristics
- flexible, microbe-resistant, double, spiral wire
- Inner diameter
Max.: 508 mm
(20 in)Min.: 80 mm
(3.15 in)- Pressure
Max.: 245,166,300 Pa
(35,558.366 psi)Min.: 0 Pa
(0 psi)- Temperature
Max.: 110 °C
(230 °F)Min.: -20 °C
(-4 °F)- Delivered length
10 m
(32'09" )
Description

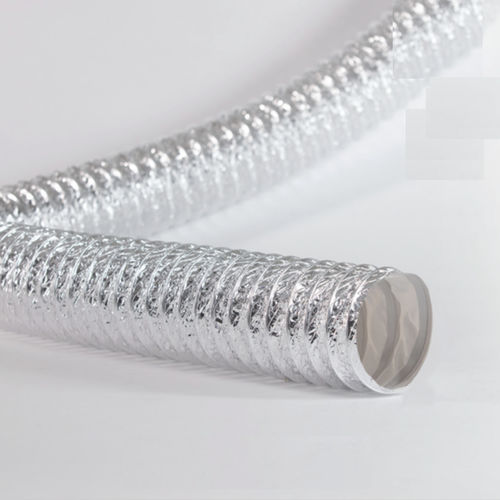

Flexible hose made with AL (aluminium) wall coupled to polyolefin resin film additivated with antibacterial/anti-mildew master.
Inner helix made of steel wire.
The set of materials for the construction of the flexible hose does not provide for the usage of chemical agents, stickers or adhesives.
SPECIFICATIONS
COLOUR: Grey internal/Aluminium external
BENDING RADIUS: 0,6 x ø
AIR SPEED: max 32 m/sec
PRESSURE: max 250mm ca
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable
buildings:
LEED: IP, EA, MR
WELL: MATERIALS, COMMUNITY
BREEAM: MAN, WST
Green Building Completo 2
CERTIFICATIONS
Aluminium wall: class 1. SA10 wall: class 1
