Chemical product hose S98pneumaticfor exhaust gassteel
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products, pneumatic, for exhaust gas
- Material
- steel, fabric, polyamide
- Applications
- suction, for pneumatic conveying, for the chemical industry, fire, exhaust
- Norms
- DIN
- Other characteristics
- flexible, duct, spiral wire
- Inner diameter
Max.: 700 mm
(27.559 in)Min.: 40 mm
(1.575 in)- Pressure
Max.: 0.3 bar
(4.351 psi)Min.: 0.03 bar
(0.435 psi)- Temperature
Max.: 150 °C
(302 °F)Min.: -20 °C
(-4 °F)- Delivered length
6 m, 10 m, 20 m
(19'08" , 32'09" , 65'07" )
Description

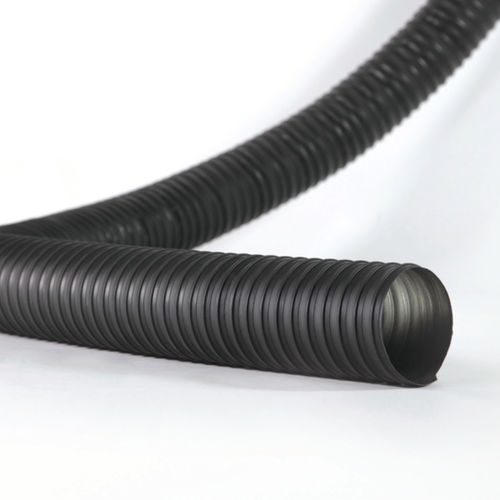

Flexible hose made of polyamide fabric impregnated with Santoprene and embedded steel wire helix. Particularly indicated in presence of aggressive fumes.
SPECIFICATIONS
COLOUR: Black
FIRE REACTION: Flame retardant Class B1 (DIN 4102)
GREEN BUILDING
Contribute to obtain the credits of the major international rating systems for sustainable buildings:
LEED: MR
WELL: MATERIALS
BREEAM: HEA
APPLICATIONS
Suction of gas and fumes plants, even with solvents and acids. Pneumatic conveyance, granule suction.
MAINTENANCE
Periodically check the state of wear of the hose and immediately replace it if damaged or broken. Pay maximum attention to the duct operating temperatures.
