Pneumatic hose P8-S/FR
neoprene®steelfabric

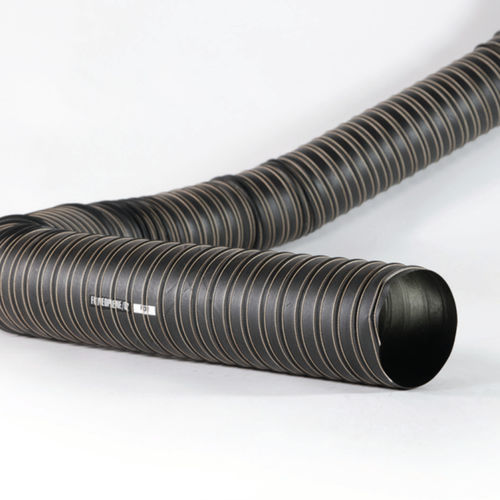

Pneumatic hose - P8-S/FR - TECNICA - neoprene® / steel / fabric
Pneumatic hose - P8-S/FR - TECNICA - neoprene® / steel / fabric
Add to favorites
Compare this product

Characteristics

Use
pneumatic
Material
neoprene®, steel, fabric, fiberglass
Applications
suction, transport, for ventilation, cooling, heating, for electronics
Other characteristics
flexible, standard, with smooth inner surface, flame-retardant, double, inner liner, neoprene-coated, spiral wire
Inner diameter

Max.: 305 mm
(12.008 in)

Min.: 19 mm
(0.748 in)

Pressure

Max.: 3 bar
(43.511 psi)

Min.: 0.3 bar
(4.351 psi)

Temperature

Max.: 150 °C
(302 °F)

Min.: -55 °C
(-67 °F)

Delivered length

4 m
(13'01" )

Description

Flexible hose made of a double layer of flame retardant neoprene-coated fibreglass fabric, embedded copper-plated steel wire helix and external double fibreglass SPECIFICATIONS COLOUR: Black AXIAL COMPRESSIBILITY: 30% COMPLIANT TO THE FLAME-RETARDANT STANDARDS: Class M1 (UNE 23723-90), CL V-O (UL-94), EN 45545-2:2013, UNI CEI 11170-3:2005 GREEN BUILDING Contribute to obtain the credits of the major international rating systems for sustainable buildings: LEED: MR WELL: MATERIALS APPLICATIONS Industrial suction and ventilation. Cooling of electronic equipment and ship machine rooms. Diesel air suction and motor vehicle heating. MAINTENANCE Periodically check the state of wear of the hose and immediately replace it if damaged or broken. Pay maximum attention to the duct operating temperatures.
