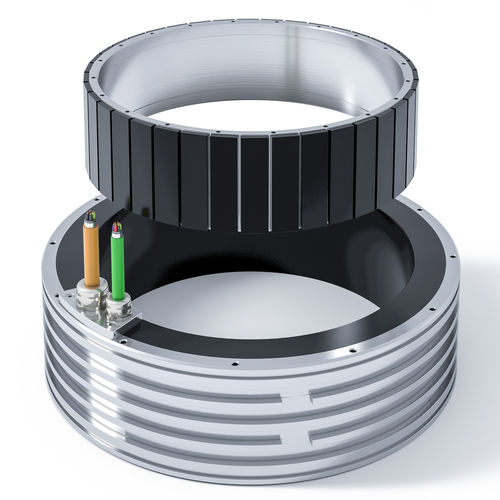

AC torque motor QTL 310 seriessynchronous3-phase480 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC, 3-phase
- Voltage
- 480 V
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for industrial applications, for the semiconductor industry, packaging machine
- Other characteristics
- direct-drive, motion control, precision
- Power
Min.: 0 W
(0 hp)Max.: 4,710 W
(6.4 hp)- Intensity
Min.: 0 A
Max.: 22 A
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 778 Nm
(573.823352 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 298 rpm
(1,872.3892 rad.min-1)- Diameter
310 mm
(12.2 in)- Operating temperature
Min.: 20 °C
(68 °F)Max.: 100 °C
(212 °F)
Description
QMT-LA 310 SERIE
The 310 series is one of the most widely used motor series because it is suitable for many applications, from cutting and grinding to metrology and indexing tables.
Its high efficiency keeps cooling demand low, making it ideal as a direct replacement in existing machines. With this upgrade, you can achieve up to 14% more torque without redesigning your system.
Torque
Ultimate torque: 347 – 1162 Nm
Peak torque: 305 – 1032 Nm
Continuous torque:153 – 605 Nm
The build heights are: 310-70 // 310-90 // 310-110 // 310-140
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
The 310 series is one of the most widely used motor series because it is suitable for many applications, from cutting and grinding to metrology and indexing tables.
Its high efficiency keeps cooling demand low, making it ideal as a direct replacement in existing machines. With this upgrade, you can achieve up to 14% more torque without redesigning your system.
Torque
Ultimate torque: 347 – 1162 Nm
Peak torque: 305 – 1032 Nm
Continuous torque:153 – 605 Nm
The build heights are: 310-70 // 310-90 // 310-110 // 310-140
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
