AC torque motor QTR 78 series

synchronous3-phase400 V

QTR78 SERIES

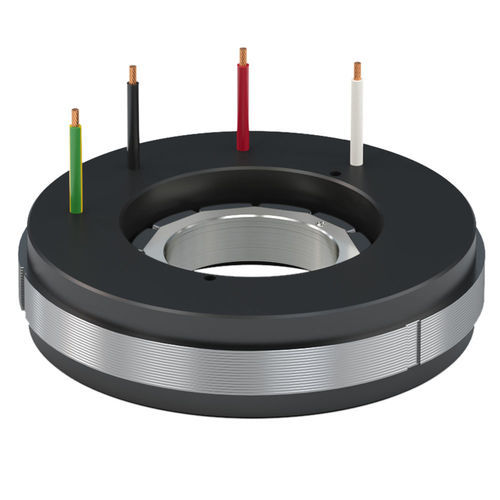

The QTR 78 is the second size available in the Tecnotion QTR range. This series offers a continuous torque range from 0.57 to 4.47 Nm. The largest QTR 78-60 motor offers a peak torque of over 7.6Nm.

To provide maximum flexibility and integration, the QTR 78 uses flying leads instead of a power cable. The build heights of the QTR 78 are: 78-17 // 78-25 // 78-34 // 78-60. Check all advantages and features for an explanation of torque motors.

Key features

Torque

• Ultimate torque: 1.24 – 10.91 Nm
• Peak torque: 0.84 – 7.67 Nm
• Continuous torque: 0.57- 4.47 Nm
• The build heights are: 78-17 // 78-25 // 78-34 // 78-60
• Optimized for low-voltage operation
• Compact installation envelope for space-constrained designs
• Flying leads (no fixed power cable) for maximum integration flexibility

Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.

• Semiconductor equipment and wafer handling
• Precision motion stages and translational systems
• Machine tooling and digital cutting equipment
• Robotics and end-effectors
• Display and printing machinery
• And more
