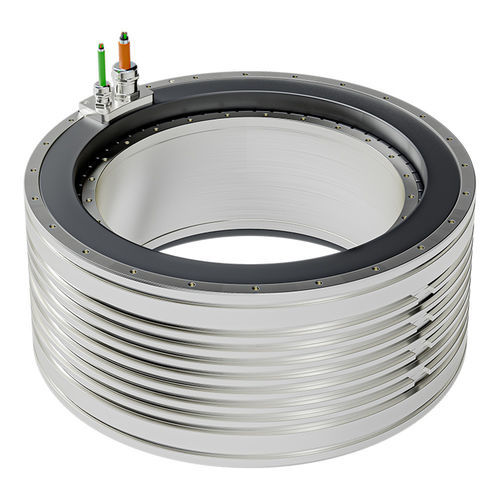

AC torque motor QMT-HA 385 seriessynchronous680Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC
- Voltage
- 680V
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for robotics, for the semiconductor industry
- Other characteristics
- direct-drive, motion control, high-torque, high-precision
- Power
Max.: 7,753 W
(10.54 hp)Min.: 0 W
(0 hp)- Intensity
Max.: 45.8 A
Min.: 0 A
- Torque
Max.: 2,678 Nm
(1,975.191436 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 154 rpm
(967.6105 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
Max.: 385 mm
(15.16 in)Min.: 385 mm
(15.16 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: 20 °C
(68 °F)
Description
Torque QMT-HA 385 series
Maximum efficiency with more torque
At just Ø385, this HA Series redefines what’s possible in the same stator size. Delivering up to 41% more performance, it upgrades your machine with minimal mechanical impact. The HA series distinguished itself with an increased rotor height while keeping the outside of the stator equal.
With seamless torque transfer directly to your tooling, energy loss and backlash are eliminated. Lower costs, higher efficiency, and precision that goes beyond industry standards – whether you aim for more productivity or unmatched accuracy.
Torque
Applications
Torque direct-drive torque motors are designed for integration in semiconductors, machine tooling, robotics, display applications and the printing industry. The QMT-HA 385 series targets use cases that need high torque density, compact mechanical impact and direct-drive performance.
Maximum efficiency with more torque
At just Ø385, this HA Series redefines what’s possible in the same stator size. Delivering up to 41% more performance, it upgrades your machine with minimal mechanical impact. The HA series distinguished itself with an increased rotor height while keeping the outside of the stator equal.
With seamless torque transfer directly to your tooling, energy loss and backlash are eliminated. Lower costs, higher efficiency, and precision that goes beyond industry standards – whether you aim for more productivity or unmatched accuracy.
Torque
- Ultimate torque: 1115 – 2678 Nm
- Peak torque: 987 – 2371 Nm
- Continuous torque: 481 – 1261 Nm
- The build heights are: 385-90 // 385-110 // 385-130 // 385-160
Applications
Torque direct-drive torque motors are designed for integration in semiconductors, machine tooling, robotics, display applications and the printing industry. The QMT-HA 385 series targets use cases that need high torque density, compact mechanical impact and direct-drive performance.
