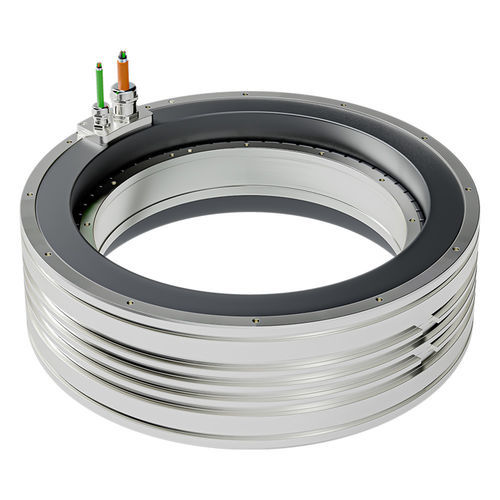

AC torque motor QMT-LA 385 seriessynchronous680Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC
- Voltage
- 680V
- Configuration
- permanent magnet, frameless, large
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for robotics, for the semiconductor industry, for cutting machines, for wood-processing machines
- Other characteristics
- direct-drive, motion control, high-torque, high-precision
- Power
Max.: 7,972 W
(10.84 hp)Min.: 0 W
(0 hp)- Intensity
Max.: 45.8 A
Min.: 0 A
- Torque
Max.: 2,229 Nm
(1,644.026031 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 279 rpm
(1,753.0087 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
Max.: 385 mm
(15.16 in)Min.: 385 mm
(15.16 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: 20 °C
(68 °F)
Description
Torque QMT-LA 385 series
Upgrade to more performance
The QMT-LA 385 delivers up to 15% more performance in both continuous torque and efficiency, without changing the mounting interface. It raises the standard for torque density in its class.
Looking beyond 15%? The QMT-HA 385, with its higher rotor design, takes performance even to the next level.
Torque
Applications
Upgrade to more performance
The QMT-LA 385 delivers up to 15% more performance in both continuous torque and efficiency, without changing the mounting interface. It raises the standard for torque density in its class.
Looking beyond 15%? The QMT-HA 385, with its higher rotor design, takes performance even to the next level.
Torque
- Ultimate torque: 680 – 2229 Nm
- Peak torque: 602 – 1973 Nm
- Continuous torque: 273 – 1036 Nm
- The build heights are: 385-90 // 385-110 // 385-130 // 385-160
Applications
- Semiconductor equipment
- Display manufacturing
- Science and aerospace
- Machine tools
- Digital cutting
- Printing systems
- Robotics
- Life sciences
- Woodworking
- Stage and system solutions
- Vacuum applications
- And more
Catalogs
QMT Torque Motors
24 Pages
