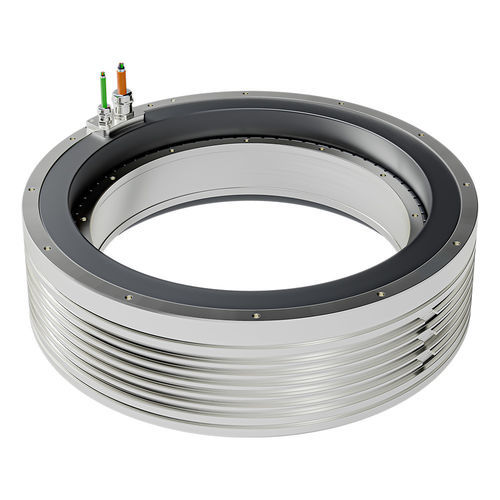

AC torque motor QMT-LA 485 seriessynchronous680Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC
- Voltage
- 680V
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for robotics, for the semiconductor industry
- Other characteristics
- direct-drive, motion control, high-torque, high-precision
- Power
Max.: 7,719 W
(10.49 hp)Min.: 0 W
(0 hp)- Intensity
Max.: 45.8 A
Min.: 0 A
- Torque
Max.: 3,585 Nm
(2,644.160305 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 168 rpm
(1,055.5751 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
Max.: 485 mm
(19.09 in)Min.: 485 mm
(19.09 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: 20 °C
(68 °F)
Description
Torque QMT-LA 485 series
Biggest size, lighter weight
As the largest size in the QMT portfolio, the QMT-LA 485 boosts both continuous torque and efficiency by up to 15%, all while keeping the same mounting interface. Thanks to its aluminum housing, this powerhouse is lighter than expected.
This low weight makes installation easier and reduces the overall impact on your machine.
When 15% isn’t enough, the QMT-HA 485 pushes performance further thanks to it’s high-torque rotor design.
Torque
Applications
Biggest size, lighter weight
As the largest size in the QMT portfolio, the QMT-LA 485 boosts both continuous torque and efficiency by up to 15%, all while keeping the same mounting interface. Thanks to its aluminum housing, this powerhouse is lighter than expected.
This low weight makes installation easier and reduces the overall impact on your machine.
When 15% isn’t enough, the QMT-HA 485 pushes performance further thanks to it’s high-torque rotor design.
Torque
- Ultimate torque: 1094 – 3585 Nm
- Peak torque: 696 – 3174 Nm
- Continuous torque: 439 – 1666 Nm
- The build heights are:485-90 // 485-110 // 485-130 // 485-160
Applications
- Machine tooling
- Semiconductors
- Robotics
- Display applications
- Printing industry
- and more
