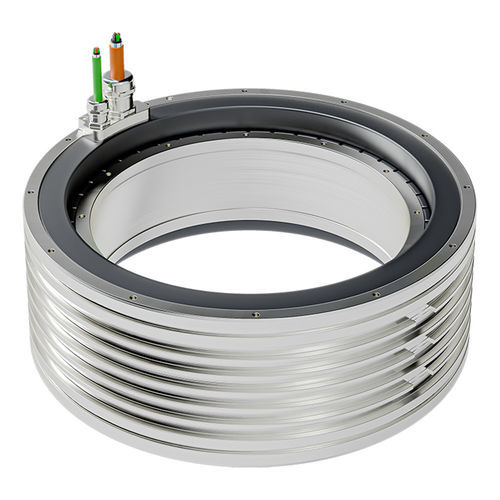

AC torque motor QMT-LA 310 seriessynchronous680Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC
- Voltage
- 680V
- Configuration
- permanent magnet, frameless, large
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for robotics, for rotary tables, industrial, for the semiconductor industry, for cutting machines, for measurement instruments, for grinding machines
- Other characteristics
- direct-drive, motion control, high-torque, high-precision
- Power
Max.: 11,019 W
(14.98 hp)1,297 W, 2,171 W, 3,045 W, 4,342 W
(1.76 hp, 2.95 hp, 4.14 hp, 5.9 hp)Min.: 0 W
(0 hp)- Intensity
Max.: 45.8 A
Min.: 0 A
- Torque
Max.: 1,162 Nm
(857.047217 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 675 rpm
(4,241.1501 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
Max.: 310 mm
(12.2 in)Min.: 310 mm
(12.2 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: 20 °C
(68 °F)
Description
Torque QMT-LA 310 Series
Proven performance across many applications
The 310 series is one of the most widely used motor series because it is suitable for many applications, from cutting and grinding to metrology and indexing tables.
Its high efficiency keeps cooling demand low, making it ideal as a direct replacement in existing machines. With this upgrade, you can achieve up to 14% more torque without redesigning your system.
Torque
Applications
Proven performance across many applications
The 310 series is one of the most widely used motor series because it is suitable for many applications, from cutting and grinding to metrology and indexing tables.
Its high efficiency keeps cooling demand low, making it ideal as a direct replacement in existing machines. With this upgrade, you can achieve up to 14% more torque without redesigning your system.
Torque
- Ultimate torque: 347 – 1162 Nm
- Peak torque: 305 – 1032 Nm
- Continuous torque:153 – 605 Nm
- The build heights are: 310-70 // 310-90 // 310-110 // 310-140
Applications
- Cutting and grinding
- Metrology and indexing tables
- Semiconductor equipment
- Machine tooling
- Robotics
- Display systems
- Printing machinery
- And more
