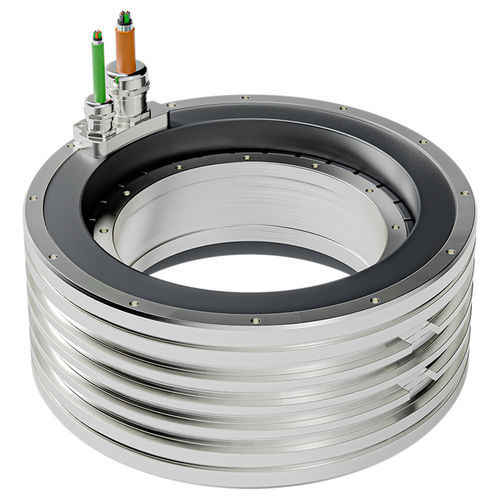

AC torque motor QMT-LA 230 seriessynchronous680Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC
- Voltage
- 680V
- Configuration
- permanent magnet, frameless, large
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for robotics, for rotary tables, for industrial applications, for the semiconductor industry, for measurement instruments
- Other characteristics
- direct-drive, motion control, high-torque, high-precision, precision
- Power
Max.: 4,280 W
(5.82 hp)Min.: 0 W
(0 hp)- Intensity
Max.: 22.5 A
Min.: 0 A
- Torque
Max.: 519 Nm
(382.794755 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 712 rpm
(4,473.6279 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
Max.: 230 mm
(9.06 in)Min.: 230 mm
(9.06 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: 20 °C
(68 °F)
Description
Torque QMT-LA 230 series
Lightweight power for dynamic applications
Torque
Ultimate torque: 155 – 519 Nm
Peak torque: 136 – 456 Nm
Continuous torque: 68 – 269 Nm
The build heights are: 230-70 // 230-90 // 230-110 // 230-140
Applications
Lightweight power for dynamic applications
Torque
Ultimate torque: 155 – 519 Nm
Peak torque: 136 – 456 Nm
Continuous torque: 68 – 269 Nm
The build heights are: 230-70 // 230-90 // 230-110 // 230-140
Applications
- Semiconductor equipment
- Machine tooling (peak force applications)
- Robotics
- Display and inspection systems
- Printing industry
- And more
