AC torque motor QMTsynchronous3-phase680V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC, 3-phase
- Voltage
- 680V
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for robotics, for the semiconductor industry
- Other characteristics
- direct-drive, motion control, high-torque, high-precision
- Power
Max.: 11,019 W
(14.98 hp)Min.: 0 W
(0 hp)- Intensity
Max.: 45.8 A
Min.: 0 A
- Torque
Max.: 4,307 Nm
(3,176.680177 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 712 rpm
(4,473.6279 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
Max.: 485 mm
(19.09 in)Min.: 230 mm
(9.06 in)- Operating temperature
Max.: 130 °C
(266 °F)Min.: 20 °C
(68 °F)
Description

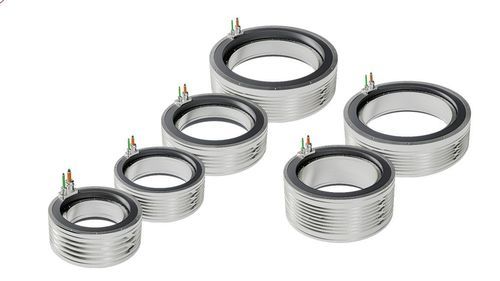

QMT Series
The QMT torque motor series is specifically designed for the machine tooling market and combines excellent mechanical compatibility with a synergy of power and precision. This improves the motion capabilities and thus enhances the overall performance of your existing machine design.
The QMT series consists of two subseries: the LA and HA series. The superior HA series has a higher rotor and delivers even higher performance thanks to its high power density.
Series and subseries
The QMT series comprises two subseries: the LA series and the higher-rotor HA series. The HA subseries features a larger rotor, delivering higher performance and greater power density compared with the LA variants.
Applications
Key features and benefits
Available series / models (as presented on the site)
Technical specifications
The QMT torque motor series is specifically designed for the machine tooling market and combines excellent mechanical compatibility with a synergy of power and precision. This improves the motion capabilities and thus enhances the overall performance of your existing machine design.
The QMT series consists of two subseries: the LA and HA series. The superior HA series has a higher rotor and delivers even higher performance thanks to its high power density.
Series and subseries
The QMT series comprises two subseries: the LA series and the higher-rotor HA series. The HA subseries features a larger rotor, delivering higher performance and greater power density compared with the LA variants.
Applications
- Cutting
- Grinding
- Metrology
- Rotary indexing tables
Key features and benefits
- Outstanding stall torque in a compact design suitable for heavy-duty tasks in limited spaces
- Direct integration into the machine structure (no additional gearbox or drive train required)
- Large open inner diameter enabling wire and cable feedthrough
- No contact between rotor and stator → no mechanical wear
- Brushless torque motor design removes the need for gearboxes, belts and speed reducers
- Aluminium housing with integrated water-cooling channels as standard to increase maximum performance
- Housing includes bolt holes to simplify mechanical installation
Available series / models (as presented on the site)
- QMT-HA 485 series
- QMT-HA 385 series
- QMT-LA 485 series
- QMT-LA 385 series
- QMT-LA 310 series
- QMT-LA 230 series
Technical specifications
- Product family: QMT torque motors
- Subseries: LA series, HA series (HA = higher rotor, higher power density)
- Mechanical integration: direct integration into machine structure; aluminium housing with bolt holes
- Cooling: integrated water-cooling channels (standard)
- Design: brushless torque motor (no rotor-stator contact)
- Inner diameter: large open inner diameter for cable/wire feedthrough
- Target applications: machine tooling (cutting, grinding, metrology, rotary indexing)
