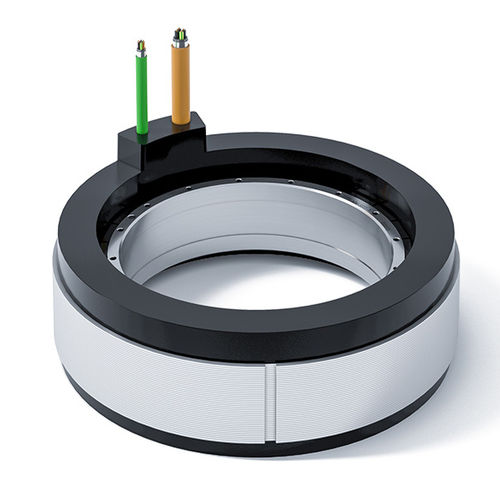

AC torque motor QTL 210 seriessynchronous3-phase480 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC, 3-phase
- Voltage
- 480 V
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Applications
- for machine tools, for rotary tables, for industrial applications, for the semiconductor industry
- Other characteristics
- direct-drive, motion control, precision
- Power
Max.: 4,927 W
(6.7 hp)Min.: 0 W
(0 hp)- Intensity
Max.: 22 A
Min.: 0 A
- Torque
Max.: 346 Nm
(255.196504 ft.lb)Min.: 0 Nm
(0 ft.lb)- Rotational speed
Max.: 716 rpm
(4,498.7607 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Diameter
210 mm
(8.27 in)- Operating temperature
Max.: 100 °C
(212 °F)Min.: 20 °C
(68 °F)
Description
QTL 210 SERIES
The QTL210 series provides more torque than the smaller QTR series. The QTL 210 is the smallest of the QTL range and is available in three heights, 65, 85 and 105 mm.
It has a large inner diameter suitable to route multiple cables through, allowing flexibility in the application. It therefore suits a wide variety of markets including rotary indexing tables, printing machinery and materials handling.
Torque
Ultimate torque: 173 – 346 Nm
Peak torque: 140 – 281 Nm
Continuous torque: 65 – 142 Nm
The build heights are: 210-65 // 210-85 // 210-105
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
The QTL210 series provides more torque than the smaller QTR series. The QTL 210 is the smallest of the QTL range and is available in three heights, 65, 85 and 105 mm.
It has a large inner diameter suitable to route multiple cables through, allowing flexibility in the application. It therefore suits a wide variety of markets including rotary indexing tables, printing machinery and materials handling.
Torque
Ultimate torque: 173 – 346 Nm
Peak torque: 140 – 281 Nm
Continuous torque: 65 – 142 Nm
The build heights are: 210-65 // 210-85 // 210-105
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
