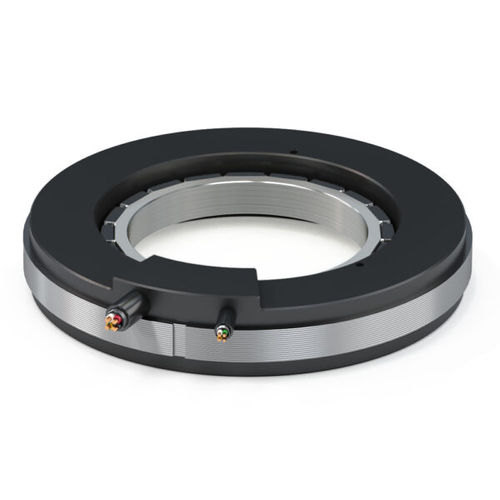

AC torque motor QTR 105 seriessynchronous3-phase400 V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC, 3-phase
- Voltage
- 400 V
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Applications
- for machine tools, for robotics, industrial, for the semiconductor industry, for medical applications, for the electronics industry
- Other characteristics
- direct-drive, motion control, precision
- Power
Min.: 0 W
(0 hp)Max.: 3,736.6 W
(5.08 hp)- Intensity
Min.: 0 A
Max.: 48.9 A
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 28.3 Nm
(20.873009 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 7,000 rpm
(43,982.2972 rad.min-1)- Diameter
Min.: 105 mm
(4.13 in)Max.: 105 mm
(4.13 in)- Operating temperature
Min.: 20 °C
(68 °F)Max.: 100 °C
(212 °F)
Description
QTR105 SERIES
The QTR 105 is where the medium-range of Tecnotion QTR motors starts. QTR 105 motors are available with a wide range of options such as different winding types and a digital hall sensor.
Various medical and health care applications benefit from the large inner diameter of the QTR 105 as well as the flat designs, starting at just 17 mm.
Torque
Ultimate torque: 3.0 – 28.4 Nm
Peak torque: 1.9 – 18.1 Nm
Continuous torque: 1.4 – 12.0 Nm
The build heights are: 105-17 // 105-25 // 105-34 // 105-60
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
The QTR 105 is where the medium-range of Tecnotion QTR motors starts. QTR 105 motors are available with a wide range of options such as different winding types and a digital hall sensor.
Various medical and health care applications benefit from the large inner diameter of the QTR 105 as well as the flat designs, starting at just 17 mm.
Torque
Ultimate torque: 3.0 – 28.4 Nm
Peak torque: 1.9 – 18.1 Nm
Continuous torque: 1.4 – 12.0 Nm
The build heights are: 105-17 // 105-25 // 105-34 // 105-60
Applications
Tecnotion direct drive motors are seamlessly integrated into a wide variety of applications, such as semi-conductors, machine tooling, robotics, display applications and printing industry. We direct drive your motion technology.
