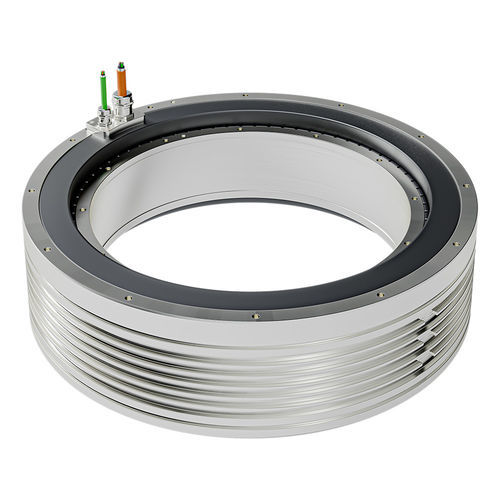

AC torque motor QMT-HA 485 seriessynchronousthree-phase680V
Add to favorites
Compare this product
Characteristics
- Type
- synchronous, AC, three-phase
- Voltage
- 680V
- Configuration
- permanent magnet, frameless
- Number of poles
- multipole
- Cooling mechanism
- water-cooled
- Applications
- for machine tools, for robotics, for the semiconductor industry
- Other characteristics
- direct-drive, motion control, high-torque, high-precision
- Power
Min.: 0 W
(0 hp)Max.: 7,291 W
(9.91 hp)- Intensity
Min.: 0 A
Max.: 45.8 A
- Torque
Min.: 0 Nm
(0 ft.lb)Max.: 4,307 Nm
(3,176.680177 ft.lb)- Rotational speed
Min.: 0 rpm
(0 rad.min-1)Max.: 90 rpm
(565.4867 rad.min-1)- Diameter
Min.: 485 mm
(19.09 in)Max.: 485 mm
(19.09 in)- Operating temperature
Min.: 20 °C
(68 °F)Max.: 130 °C
(266 °F)
Description
Torque QMT-HA 485 series
The new benchmark in machine tooling
With it’s unmatched performance, Tecnotion’s largest high-torque motor enables more accuracy or increases machine productivity. The largest Torque QMT-HA 485 series sets the new benchmark,
delivering up to 80% more performance with the same stator and rotor footprint. The higher rotor combined with larger coils inside, gives a enormous torque increase without any need of design changes.
Torque QMT-HA 485 series
Applications
The new benchmark in machine tooling
With it’s unmatched performance, Tecnotion’s largest high-torque motor enables more accuracy or increases machine productivity. The largest Torque QMT-HA 485 series sets the new benchmark,
delivering up to 80% more performance with the same stator and rotor footprint. The higher rotor combined with larger coils inside, gives a enormous torque increase without any need of design changes.
Torque QMT-HA 485 series
- Ultimate torque: 1792 – 4307 Nm
- Peak torque: 1587 – 3812 Nm
- Continuous torque: 774 – 2028 Nm
- The build heights are: 485-90 // 485-110 // 485-130 // 485-160
Applications
- Semiconductors
- Machine tooling
- Robotics
- Display applications
- Printing industry
- and more
